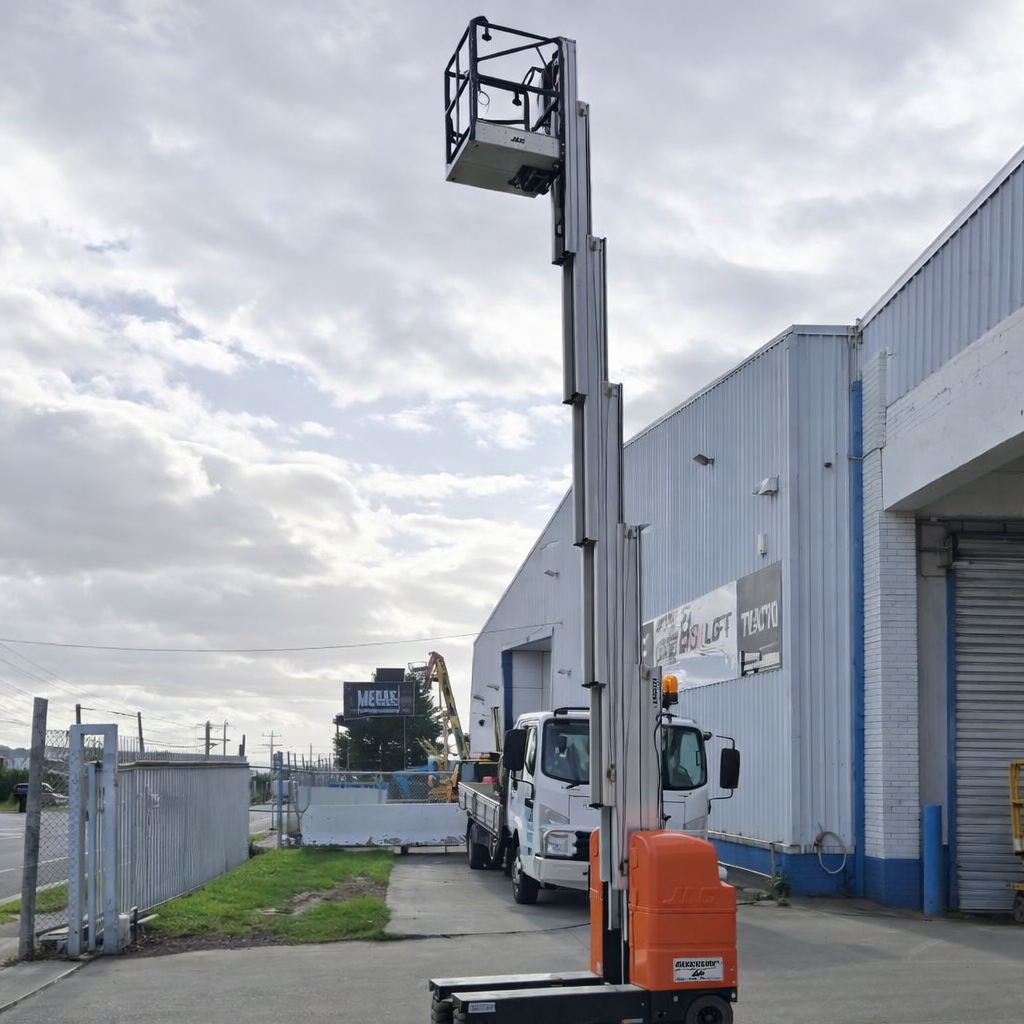

JLG 20DVL Specs
Quick-reference specifications for the JLG 20DVL vertical mast, taken from the manufacturer’s spec sheet.
- Platform Capacity – Oversized Platform
- 350 lb159 kg
- Platform Height
- 19 ft 6 in5.97 m
- Working Height
- 25 ft 6 in7.80 m
- Gradeability
- 30%
Performance 8 specs
| Working Height | 25 ft 6 in (7.80 m) |
|---|---|
| Platform Capacity – Oversized Platform | 350 lb (159 kg) |
| Platform Capacity – Narrow Platform | 350 lb (159 kg) |
| Platform Capacity – Molded Platform | 350 lb (159 kg) |
| Drive Maximum Speed – Platform Lowered | 2.5 mph (4 kph) |
| Drive Maximum Speed – Platform Elevated | 0.6 mph (1 kph) |
| Gradeability | 30% |
| Drive System | Direct Electric |
Dimensions 13 specs
| Platform Height | 19 ft 6 in (5.97 m) |
|---|---|
| Drive Height | Max. Platform Height |
| Stowed Height | 78 in (198 cm) |
| Platform Entry Height | 19 in (48 cm) |
| Overall Vehicle Length – Chassis Length | 51.5 in (131 cm) |
| Overall Vehicle Length – Extension Platform Retracted | 53 in (135 cm) |
| Overall Vehicle Width – Chassis Width | 29.5 in (75 cm) |
| Overall Vehicle Width – Extension Platform | 31.5 in (80 cm) |
| Overall Vehicle Width – All Other Platforms | 29.5 in (75 cm) |
| Underclearance | 2 in (5 cm) |
| Wheel Diameter & Width – Rear Drive & Steer Wheels | 10 in x 3 in (25 cm x 8 cm) |
| Wheel Diameter & Width – Front Caster Wheels | 8 in x 2.5 in (20 cm x 6 cm) |
| Tire Material | Non-Marking Polyurethane |
Weight 1 spec
| Gross Vehicle Weight – Slide-Rail & Gull Wing Platforms | 2035 lb (923 kg) |
|---|
Power / Engine 2 specs
| Batteries | Two Sealed 100 AH 12 Volt |
|---|---|
| Battery Charger | 20 Amp |
