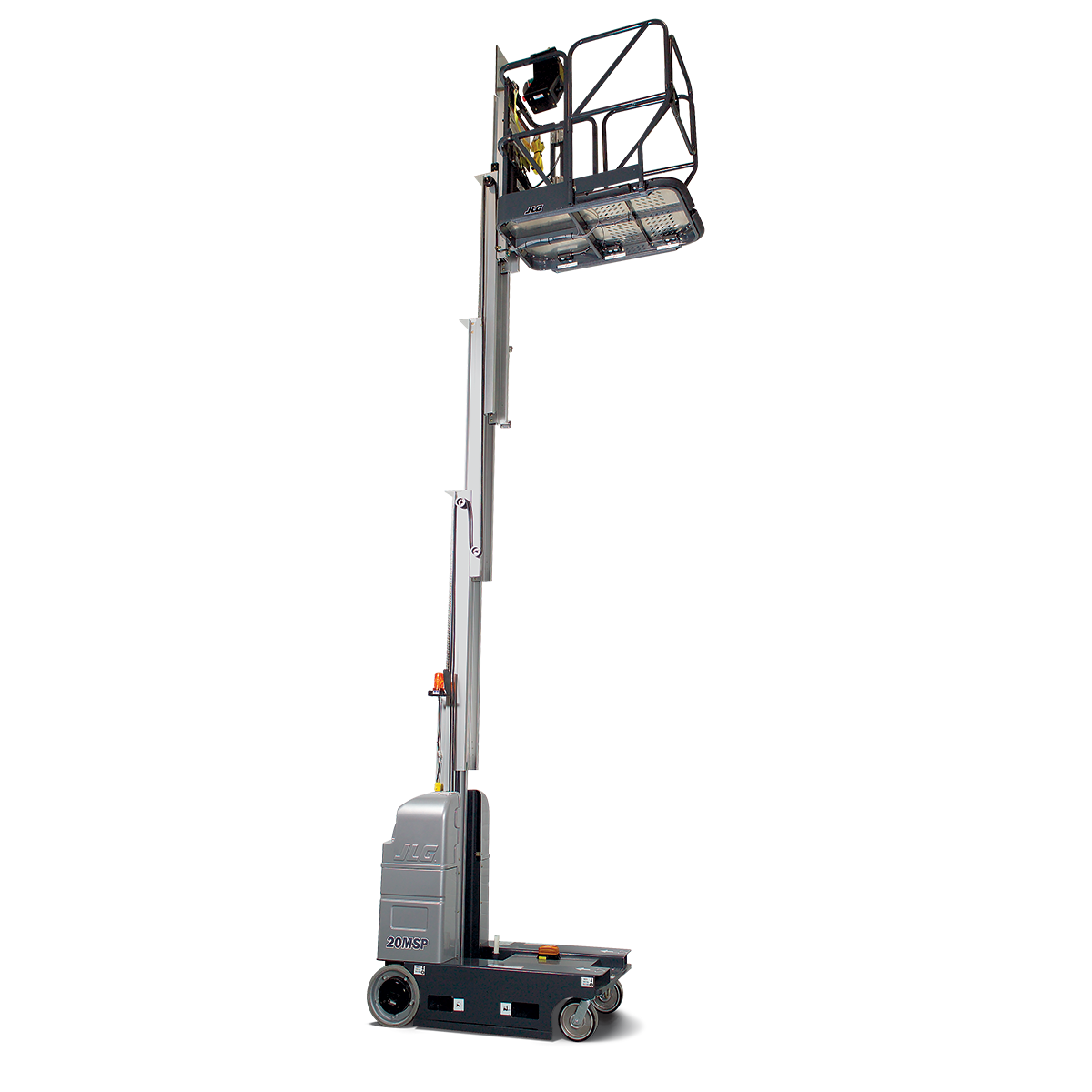

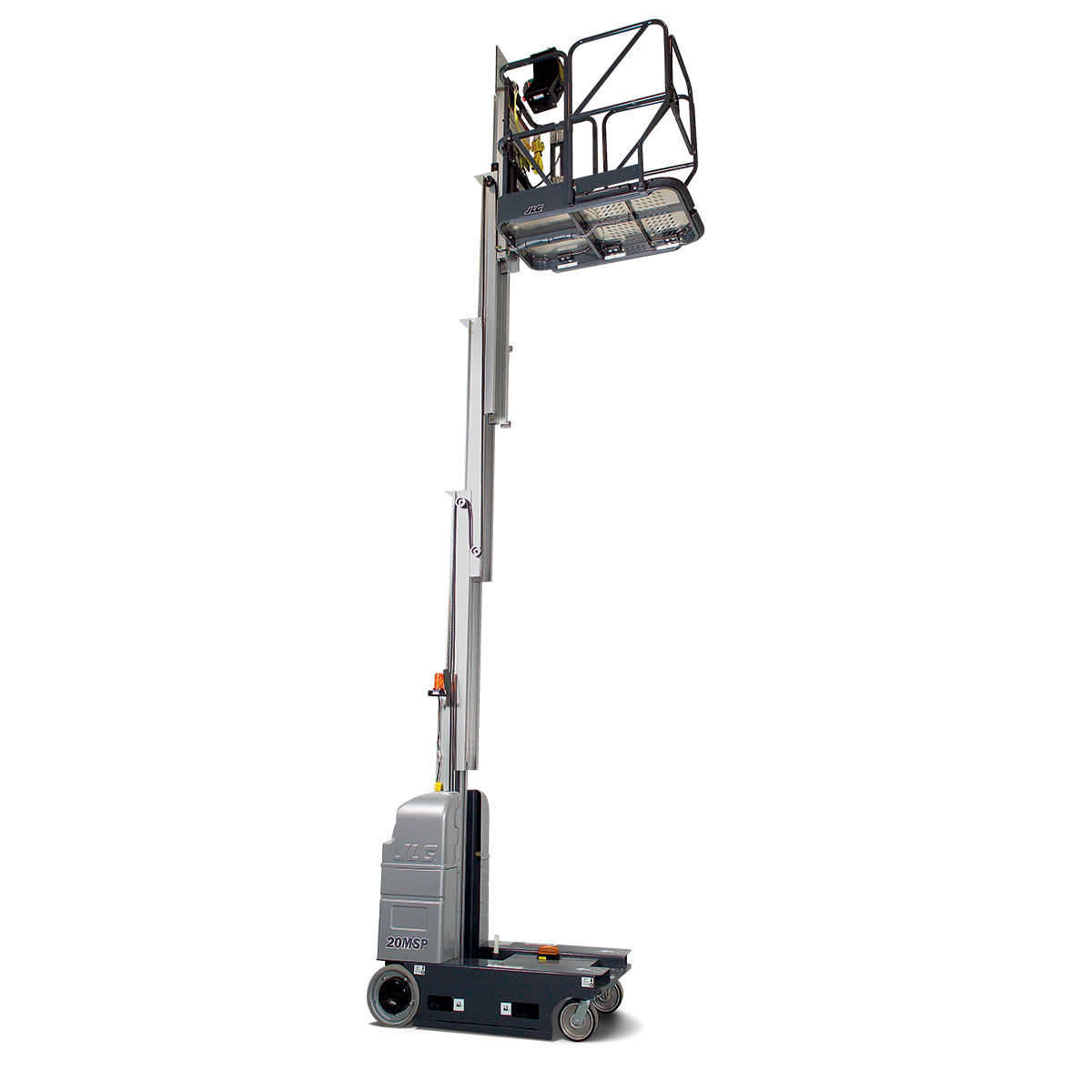

JLG 20MSP Spec Sheet
Quick-reference specifications for the JLG 20MSP. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity: 400 lb
Working Height 25 ft: 5 in.
Platform Height 19 ft: 5 in.
Stowed Height: 78 in.
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 19 ft | 5 in. |
|---|---|
| Working Height 25 ft | 5 in. |
| Platform Capacity | 400 lb |
| Gradeability | 30% |
Dimensions
| Stowed Height | 78 in. |
|---|---|
| Platform Entry Height | 18 in. |
| Platform Size W x L 28 x | 48 in. |
| Chassis Length | 53.5 in. |
| Chassis Width | 29.5 in. |
Weights & Electrical
| in 29 CFR 1910.67, 29 CFR | 1926.453, ANSI A92.5-2006, and CSA Standard CAN3-B354.2-M82, as originally manufactured for intended applications. |
|---|---|
| Gross Vehicle Weight | 2,425 lb |
| Batteries Two Sealed | 100 amp-hr Maintenance Free |
| Battery Charger | 25 Amp Automatic |
Powertrain & Systems
| JLG Industries, Inc. | 1 JLG Drive |
|---|---|
| Drive System | 4 Brush Direct Electric (planetary gear) |
