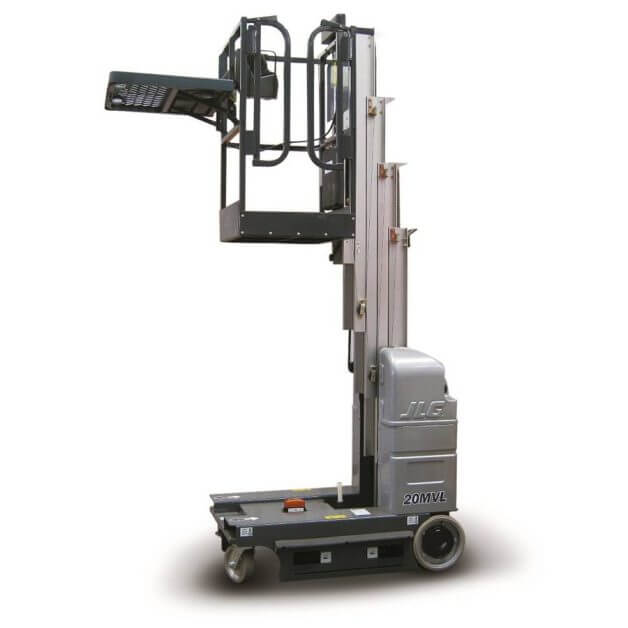

JLG 20MVL Specs

Quick-reference specifications for the JLG 20MVL vertical mast, taken from the manufacturer’s spec sheet.

Download Spec Sheet (PDF)View PDF

Platform Capacity – Side Entry Platform: 115 kg

Performance 8 specs

Platform Capacity – Side Entry Platform	115 kg
Material Tray Capacity	45 kg
Platform Capacity – Stockpicking Platform	160 kg
Platform Capacity – Narrow Platform	160 kg
Platform Capacity – Extension Platform	160 kg
Drive Maximum Speed – Platform Lowered	5.4 km/h
Drive Maximum Speed – Platform Elevated	0.8 km/h
Wheel Diameter – Rear Drive & Steer Wheels	32 cm x 10 cm

Dimensions 14 specs

Platform Entry Height	0.46 m
Platform Entry Height Stock Picking Platform	0.43 m
Platform Size – Side Entry with Material Tray	0.69 m x 0.58 m
Platform Size – Stockpicking Platform (W x L)	0.63 m x 0.71 m
Platform Size – Narrow Platform (W x L)	0.56 m x 0.63 m
Platform Size – Extension Platform Retracted (W x L)	0.66 m x 0.66 m
Platform Size – Extension Platform Extended (W x L)	0.66 m x 1.25 m
Vehicle Length – Extension Platform Retracted	1.36 m
Vehicle Length – Stock Picking Platform	1.88 m
Vehicle Length – All other Platforms	1.36 m
Vehicle Width – Chassis Width	0.75 m
Vehicle Width – Extension Platform	0.80 m
Vehicle Width – Stock Picking Platform	0.80 m
Vehicle Width – All Other Platforms	0.75 m

Weight 5 specs

Machine weight – All Other Platforms 1	1,060 kg
Machine weight – Extension Platform 1	1,090 kg
Machine weight – Stock Picking Platform 1	1,110 kg
Maximum Ground Bearing Pressure Front Casters	19.50 kg/cm2
Maximum Ground Bearing Pressure Rear Wheels	9.21 kg/cm2
