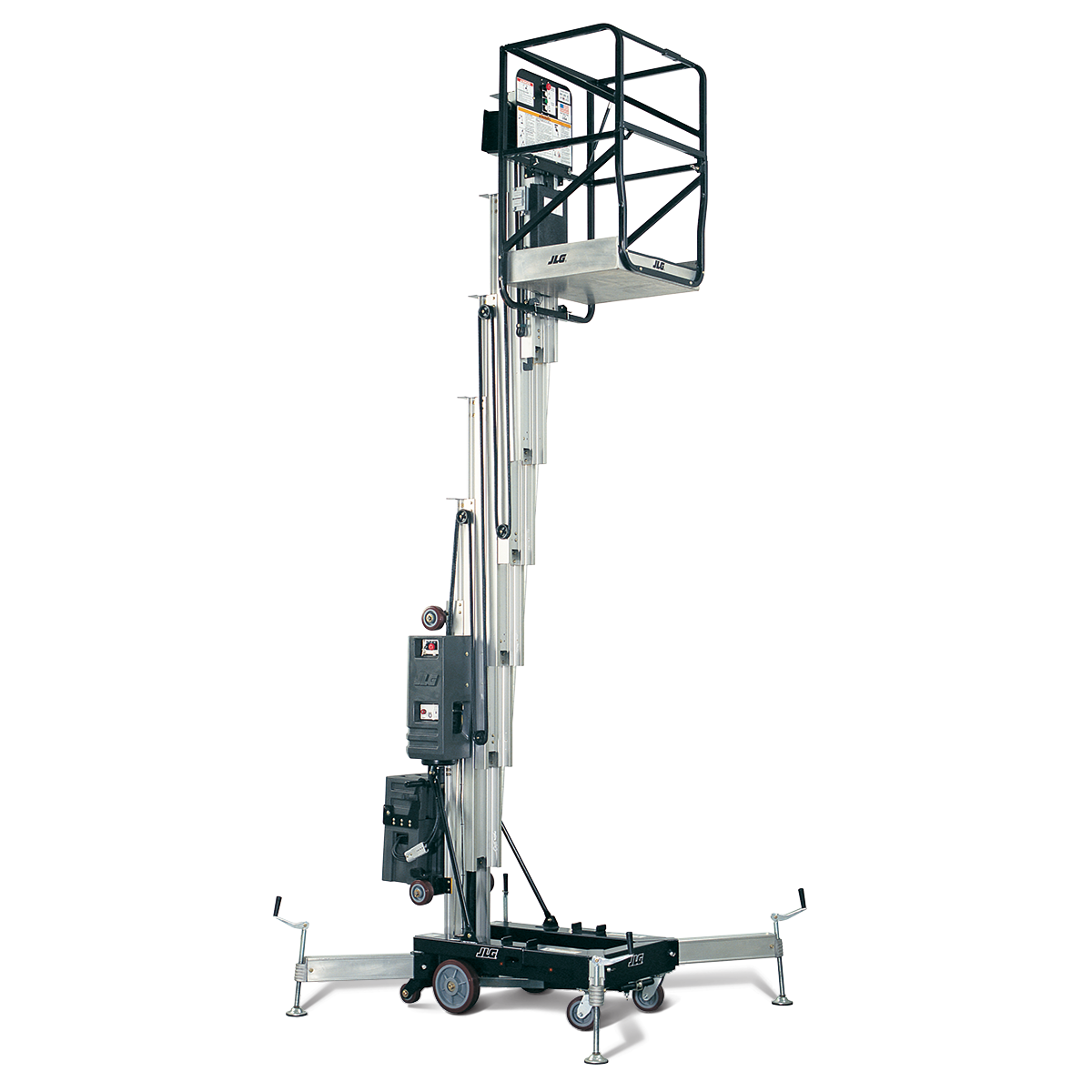

JLG 25AM Specs
Quick-reference specifications for the JLG 25AM vertical mast, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 350 lb160 kg
- Platform Height
- 25 ft 2 in7.67 m
- Working Height
- 31 ft9.45 m
- Weight
- 825 lb374 cm – AC
Performance 2 specs
| Platform Capacity | 350 lb (160 kg) |
|---|---|
| Working Height | 31 ft (9.45 m) |
Dimensions 9 specs
| Platform Height | 25 ft 2 in (7.67 m) |
|---|---|
| Machine Width | 29.5 m / 75 cm |
| Machine Height | 78 in (1.98 m) |
| Platform Width | 28 in (71 cm) |
| Platform Length | 26 in (66 cm) |
| Machine Length | 48 in (1.22 m) |
| Outrigger Length | 67.87 in (1.72 m) |
| Outrigger Width | 62 in (1.57 m) |
| Ground Entry Height | 18.9 in (48 cm) |
Weight 3 specs
| Weight | 825 lb (374 cm – AC) |
|---|---|
| Weight (AC) | 825 / 374 kg |
| Weight (DC) | 905 lb (411 kg) |
Power / Engine 1 spec
| Machine Length without Battery Pack | 47 in (1.19 m) |
|---|
