Equipment Spec Sheet

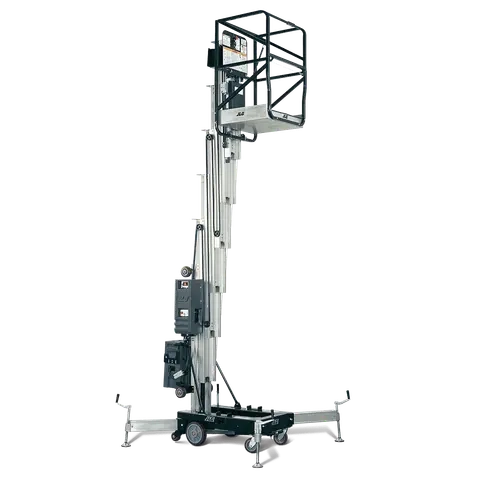

JLG 30AM Spec Sheet
Quick-reference specifications for the JLG 30AM. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity 300-lb /: 136-kg
Working Height 35.7-ft /: 10.88-m
Platform Height 29.7-ft /: 9.05-m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 29.7-ft / | 9.05-m |
|---|---|
| Working Height 35.7-ft / | 10.88-m |
| Platform Capacity 300-lb / | 136-kg |
Dimensions
| Machine Width 29.1-in / | 74-cm |
|---|---|
| A. Machine Height 78-in / | 1.98-m |
| B. Platform Width 28-in / | 71-cm |
| C. Platform Length 26-in / | 66-cm |
| D. Machine Width 29.1-in / | 74-cm |
| E. Machine Length 51.9-in / | 1.31-m |
| Machine Length without Battery Pack 47-in / | 1.19-m |
| F. Outrigger Length 75-in / | 1.91-m |
| G. Outrigger Width 72-in / | 1.83-m |
| H. Ground Entry Height 18.9-in / | 48-cm |
Weights & Electrical
| Batteries 12V | 93 Amp hr (DC Only) |
|---|---|
| Platform | 93 AH Lead-Acid Battery—DC Models Only |
| duty cycles and an automatic charger. Part No. | 3132144 | R0324_02 |
