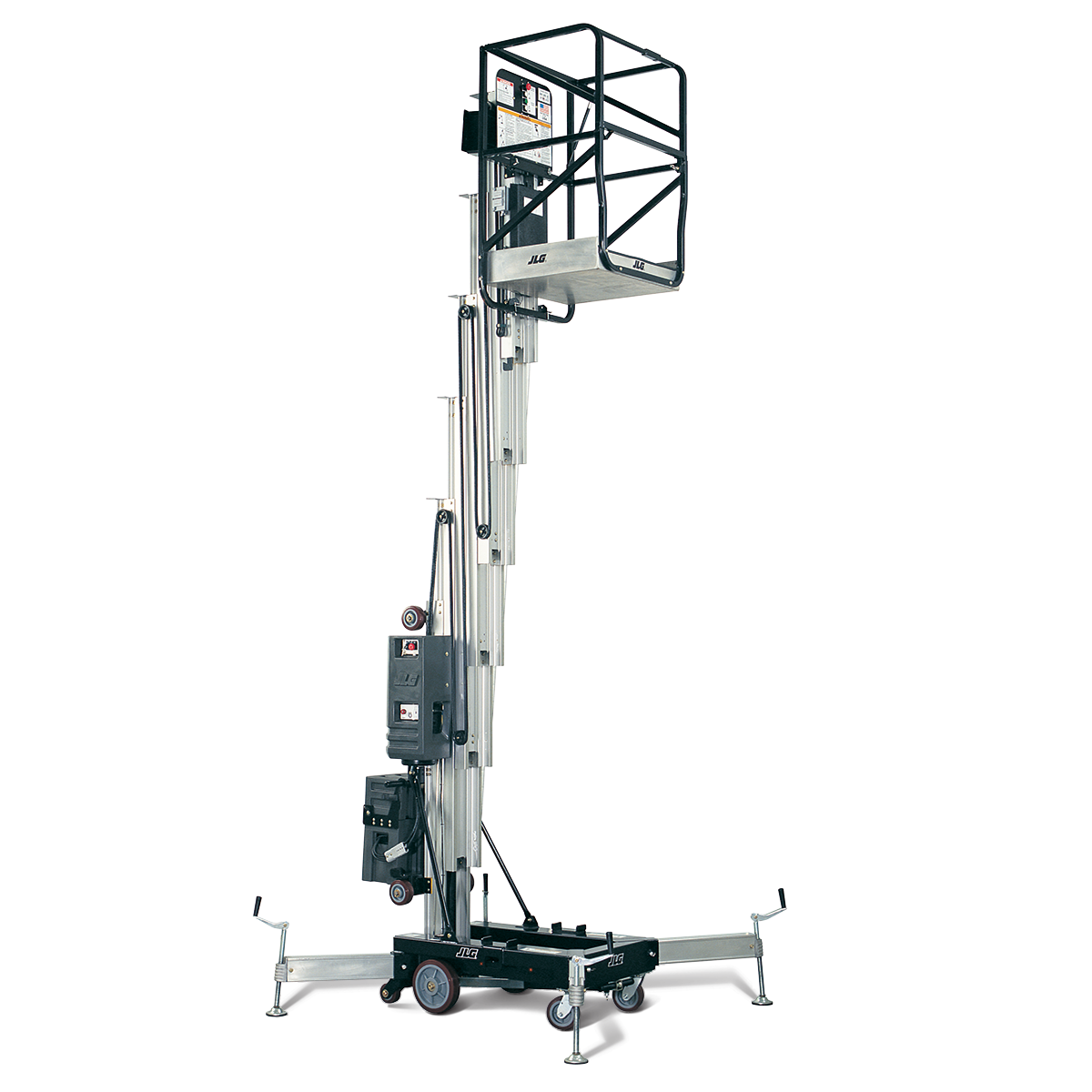

JLG 36AM Specs

Quick-reference specifications for the JLG 36AM vertical mast, taken from the manufacturer’s spec sheet.

Performance 2 specs

Working Height	13.05 m
Platform Capacity	135 kg

Platform Size – Narrow (W x L)	0.56 m x 0.63 m
Platform Size – Side Entry (W x L)	0.66 m x 0.66 m
Overall Height – Tilted Back	1.92 m
Base Width – Stowed	0.74 m
Overall Height – Stowed	2.64 m
Base Length – Stowed	1.38 m
Base Length – Without Platform	1.35 m
Overall Length – Tilted Back	2.74 m
Ground Entry Height	0.48 m
Outrigger Footprint Size	2.13 m x 2.18 m

Machine weight – AC	440 kg
Machine weight – DC	475 kg
