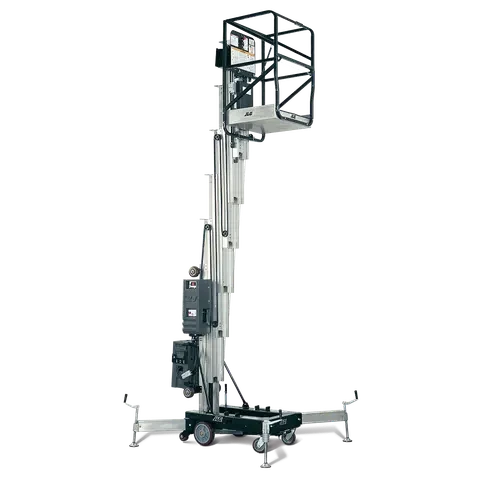

JLG 38AM Specs
Quick-reference specifications for the JLG 38AM vertical mast, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 300 lb136 kg
- Platform Height
- 38 ft11.58 m
- Weight
- 1,265 lb574 kg – AC
Performance 1 spec
| Platform Capacity | 300 lb (136 kg) |
|---|
Dimensions 9 specs
| Platform Height | 38 ft (11.58 m) |
|---|---|
| Machine Width | 29.1 in (74 cm) |
| Machine Height | 103.9 in (2.64 m) |
| Platform Width | 28 in (71 cm) |
| Platform Length | 26 in (66 cm) |
| Machine Length | 57.4 in (1.46 m) |
| Outrigger Length | 86 in (2.18 m) |
| Outrigger Width | 80.5 in (2 m) |
| Ground Entry Height | 18.9 in (48 cm) |
Weight 3 specs
| Weight | 1,265 lb (574 kg – AC) |
|---|---|
| Weight (AC) | 1,265 lb (574 kg) |
| Weight (DC) | 1,395 lb (633 kg) |
Power / Engine 1 spec
| Machine Length without Battery Pack | 47 in (1.19 m) |
|---|
