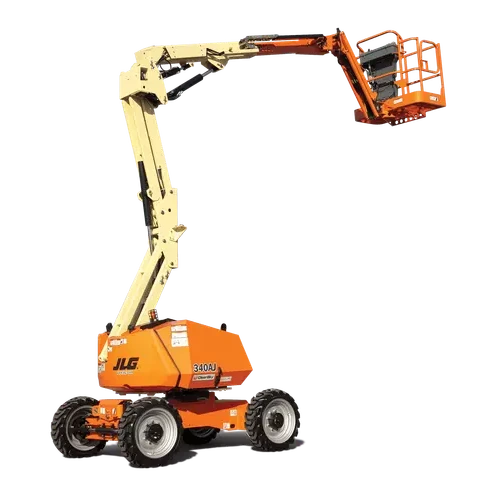

JLG 340AJ Specs
Quick-reference specifications for the JLG 340AJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 33 ft 10.5 in10.33 m
- Weight
- 10,175 lb4,615 kg
Performance 11 specs
| Horizontal Outreach | 19 ft 11 in (6.06 m) |
|---|---|
| Up and Over Reach | 17 ft (5.17 m) |
| Platform Capacity | 500 lb (227 kg) |
| Swing | 355 Degrees Non-Continuous |
| Jib | 4 ft (1.22 m) |
| Range of Articulation | 139 Degrees (+79, -60) |
| Tilt Cut Out | 4 Degrees |
| Turning Radius Inside | 5 ft (1.52 m) |
| Turning Radius Outside | 13 ft (3.96 m) |
| Tank | AC Generator, 3500W |
| Top Rail | 110 V-AC Receptacle in the |
Dimensions 10 specs
| Platform Height | 33 ft 10.5 in (10.33 m) |
|---|---|
| Up and Over Height | 17 ft (5.17 m) |
| Platform Width | 30 in (0.76 m) |
| Platform Length | 60 in (1.22 m) |
| Machine Width | 6 ft 4 in (1.93 m) |
| Tailswing | 2 in (5.08 cm) |
| Machine Height | 6 ft 7 in (2 m) |
| Machine Length | 18 ft 2 in (5.52 m) |
| Wheelbase | 6 ft 2 in (1.87 cm) |
| Ground Clearance | 10 in (23.7 cm) |
Weight 2 specs
| Weight | 10,175 lb (4,615 kg) |
|---|---|
| Max. Ground Bearing Pressure | 62 psi (4.3 kg/cm²) |
Power / Engine 3 specs
| Dual Fuel Engine – PSI/GM L4 EFI | 28.7 hp (21.4 kW) |
|---|---|
| Diesel Fuel – Kubota D1105 | 24.8 hp (18.5 kW) |
| Auxiliary Power | 12 V DC |
Hydraulics / Fluids 1 spec
| Fuel Tank Capacity | 13 gal (49.21 L) |
|---|
