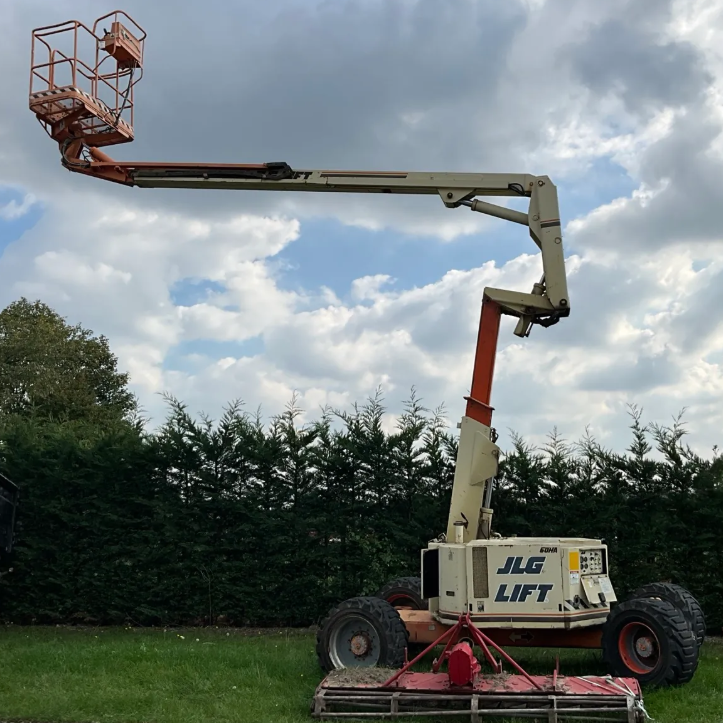

JLG 60HA Specs
Quick-reference specifications for the JLG 60HA boom lift, compiled from published specifications.
- Platform Capacity
- 500 lb227 kg
- Working Height
- 65.9 ft20.1 m
- Operating Weight
- 20,100 lb9,117 kg
- Gradeability
- 45%
Performance 10 specs
| Platform Capacity | 500 lb (227 kg) |
|---|---|
| Horizontal Outreach | 36 ft (10.97 m) |
| Up and Over Height | 27 ft (8.23 m) |
| Turning Radius (Inside) | 10 ft (3.05 m) |
| Turning Radius (Outside) | 20 ft (6.10 m) |
| Platform Rotation | 180 degrees |
| Drive Speed | 3 mph (4.83 km/h) |
| Gradeability | 45% |
| Working Height | 65.9 ft (20.1 m) |
| Max Horizontal Reach | 33.1 ft (10.1 m) |
Dimensions 7 specs
| Transport Length | 24 ft 2 in (7.37 m) |
|---|---|
| Transport Width | 7 ft 11 in (2.41 m) |
| Transport Height | 7 ft 11 in (2.41 m) |
| Machine Length (Operating) | 28 ft (8.53 m) |
| Machine Width (Operating) | 8 ft (2.44 m) |
| Platform Width | 8 ft (2.44 m) |
| Wheelbase | 8 ft (2.44 m) |
Weight 1 spec
| Operating Weight | 20,100 lb (9,117 kg) |
|---|
Power / Engine 1 spec
| Horsepower | 82 hp (61 kW) |
|---|
