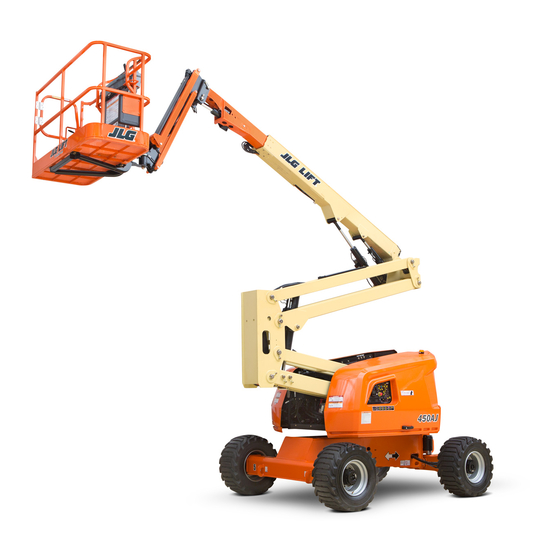

JLG 450AJ Specs
Quick-reference specifications for the JLG 450AJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 550 lb250 kg
- Platform Height
- 45 ft13.72 m
- Weight
- 14,150 lb6,418 kg
- Gradeability 2WD / 4WD
- 30% / 45%
Performance 11 specs
| Horizontal Outreach | 25 ft (7.62 m) |
|---|---|
| Platform Capacity | 550 lb (250 kg) |
| Swing | 355 Degrees Non-Continuous |
| Jib | 4 ft 1 in (1.24 m) |
| Range of Articulation | 145 Degrees (+76, -69) |
| Drive Speed | 4.25 mph (6.8 km/h) |
| Gradeability 2WD / 4WD | 30% / 45% |
| Tilt Cut Out | 5 Degrees |
| Axle Oscillation | 4 in (10 cm) |
| Turning Radius Inside | 6 ft 9 in (2.06 m) |
| Turning Radius Outside | 15 ft 8 in (4.78 m) |
Dimensions 8 specs
| Platform Height | 45 ft (13.72 m) |
|---|---|
| Up and Over Height | 24 ft (7.3 m) |
| Platform Width | 30 in (0.76 m) |
| Platform Length | 72 in (1.83 m) |
| Machine Width | 7 ft 8.6 in (2.35 m) |
| Machine Length | 21 ft 6.9 in (6.57 m) |
| Wheelbase | 7 ft 9 in (2.36 m) |
| Ground Clearance | 16.4 in (41.7 cm) |
Weight 2 specs
| Weight | 14,150 lb (6,418 kg) |
|---|---|
| Max. Ground Bearing Pressure | 65 psi (4.57 kg/cm²) |
Power / Engine 3 specs
| Dual Fuel – Kubota WG2503 | 60 hp (44 kW) |
|---|---|
| Diesel Fuel – Deutz D2.9L4 Tier 4 Final | 49 hp (36.4 kW) |
| Auxiliary Power | 12 V DC |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 16 gal (60.6 L) |
|---|---|
| Tank Capacity | 15 gal (56.8 L) |
