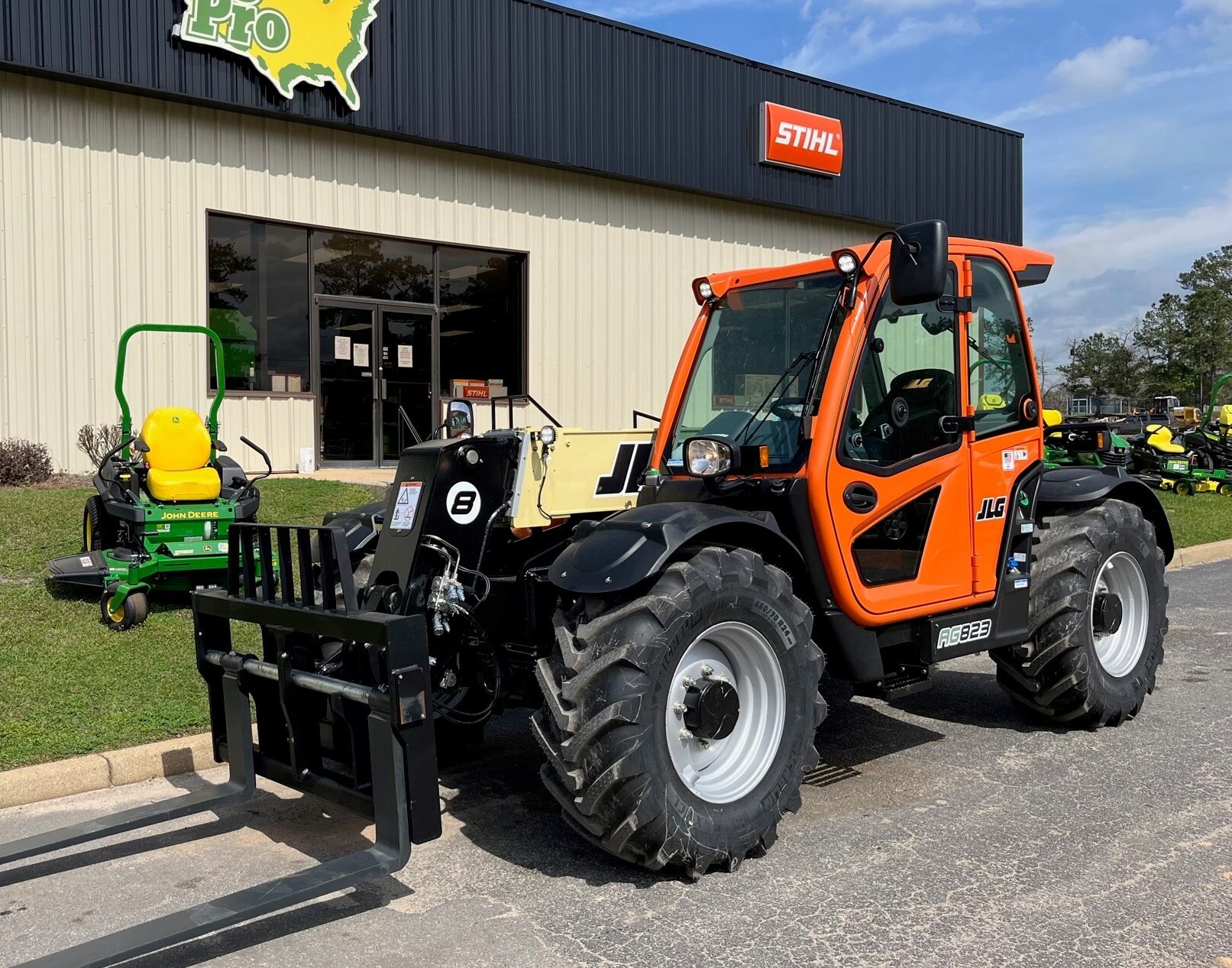

JLG 823 Specs
Quick-reference specifications for the JLG 823 telehandler, compiled from published specifications.
- Rated Capacity
- 7,716 lb3,500 kg
- Capacity at Maximum Lift Height
- 1,949 lb884 kg
- Maximum Lift Height
- 32 ft 2 in9.8 m
- Maximum Forward Reach
- 21 ft 8 in6.6 m
Performance 8 specs
| Rated Capacity | 7,716 lb (3,500 kg) |
|---|---|
| Maximum Lift Height | 32 ft 2 in (9.8 m) |
| Capacity at Maximum Lift Height | 1,949 lb (884 kg) |
| Maximum Forward Reach | 21 ft 8 in (6.6 m) |
| Capacity at Maximum Reach | 1,260 lb (572 kg) |
| Maximum Travel Speed | 25 mph (40 km/h) |
| Approximate Operating Weight | 20,170 lb (9,149 kg) |
| Outside Turning Radius Over Tires | 12 ft (3.7 m) |
Power / Engine 2 specs
| Horsepower | 120-134 hp |
|---|---|
| Transmission | 6-speed powershift |
Hydraulics / Fluids 1 spec
| Auxiliary Hydraulics Flow | 25 gal/min (optional dual) |
|---|
