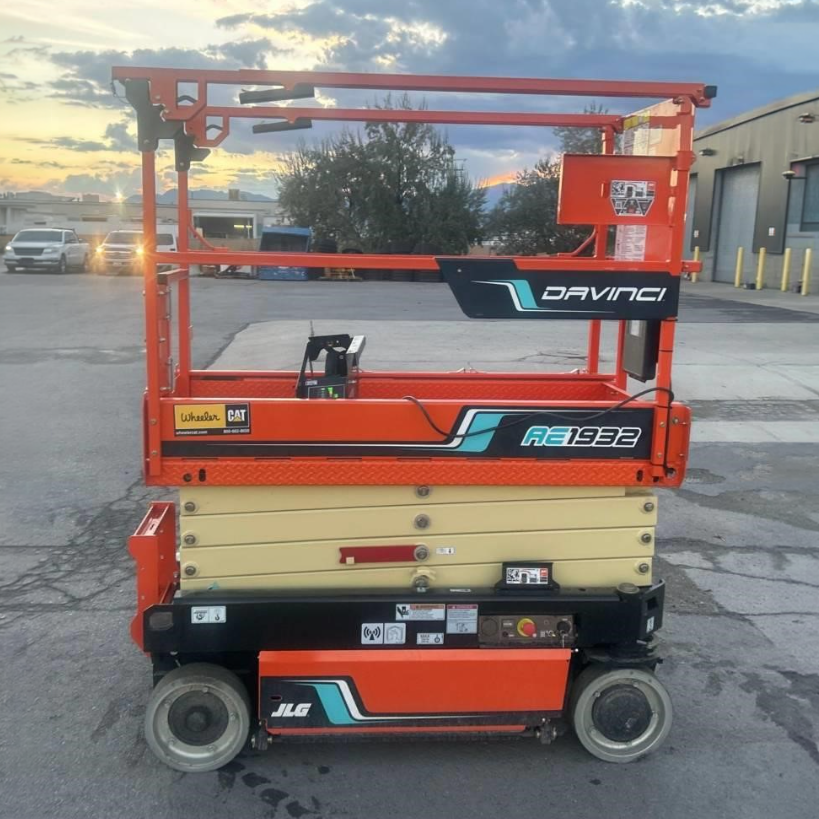

JLG AE1932 Specs
Quick-reference specifications for the JLG AE1932 scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 606 lb275 kg
- Capacity on Platform Extension
- 265 lb120 kg
- Platform Height (Elevated)
- 19 ft5.8 m
- Platform Height
- 19 ft5.8 m
Performance 10 specs
| Platform Capacity | 606 lb (275 kg) |
|---|---|
| Capacity on Platform Extension | 265 lb (120 kg) |
| Lift / Lower Time | 24/26 seconds |
| Drive Speed (Elevated) | 0.5 mph (.8 km/h) |
| Drive Speed (Lowered) | 4 mph (6.4 km/h) |
| Gradeability | 25% |
| Max Tilt Rating (Fore and Aft) | 3.75 Degrees |
| Drive | 24 V AC |
| Efficient AC drive motors provide | 4 mph stowed drive speed, while |
| Platform Extension | 36.0 in (91.0 cm) |
Dimensions 11 specs
| Platform Height | 19 ft (5.8 m) |
|---|---|
| Platform Height (Elevated) | 19 ft (5.8 m) |
| Machine Width | 32.0 in (81.0 m) |
| Wheelbase | 53.0 in (1.3 m) |
| Ground Clearance | 2.8 in (7.0 m) |
| Machine Length | 68.7 in (1.7 m) |
| Platform Height (Lowered) | 38.7 in (.982 m) |
| Platform Railing Height | 44.4 in (1.28 m) |
| Machine Height (Rails Raised) | 83.2 in (2.11 m) |
| Machine Height (Rails Lowered) | 78.2 in (1.99 m) |
| Platform Width | 25.4 in (.64 m) |
Weight 1 spec
| Ground Bearing Pressure | 150 psi |
|---|
Power / Engine 1 spec
| Single 24V Lithium Ion, 72 Ah | 27 amp, 650W |
|---|
