General Aerial Work Platform · JLG

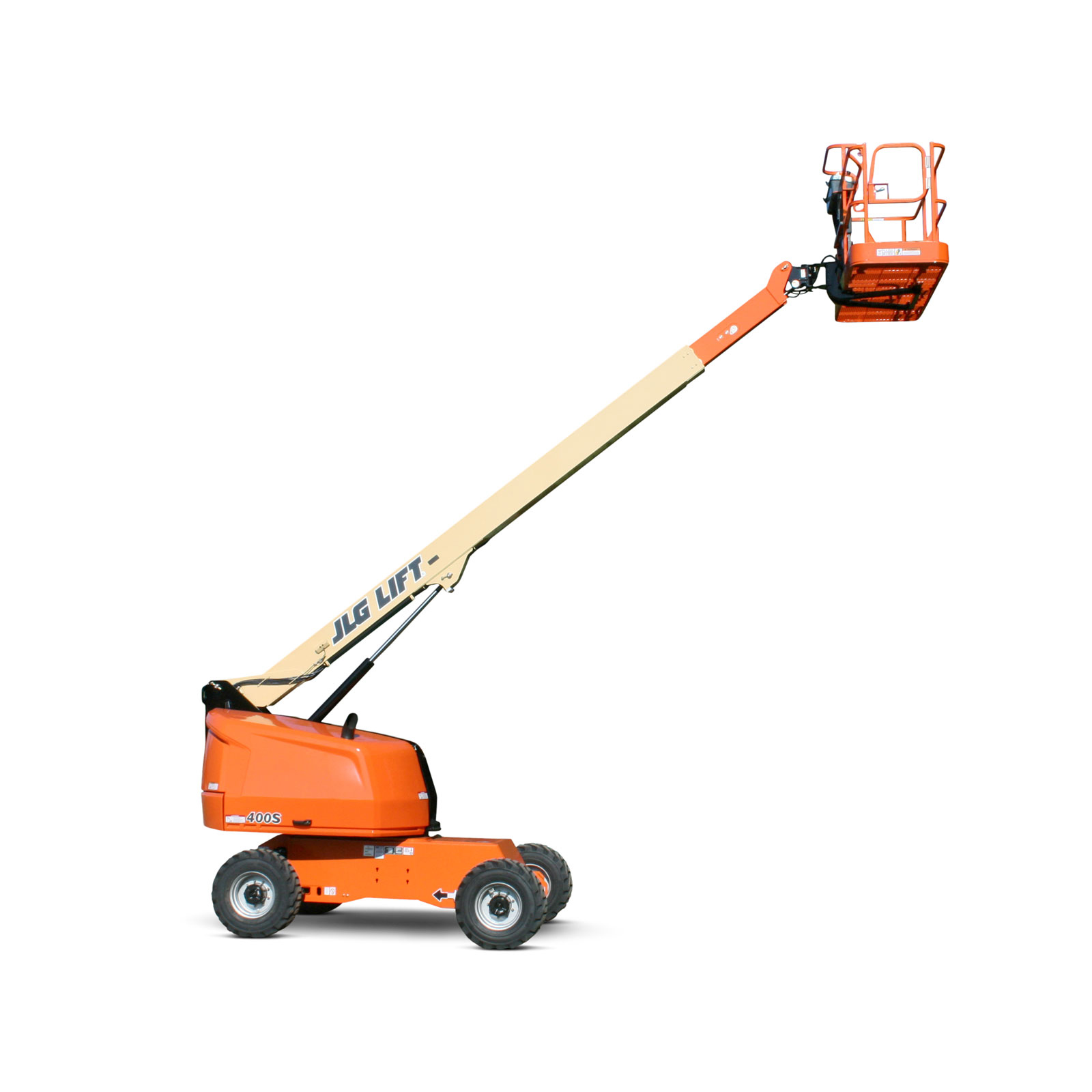

JLG 400S Specs
Quick-reference specifications for the JLG 400S boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity (Restricted)
- 1,000 lb454 kg
- Platform Height
- 40 ft12.19 m
- Weight
- 13,640 lb6,187 kg
- Gradeability
- 45%
Performance 7 specs
| Drive Speed | 4.25 mph (6.8 km/h) |
|---|---|
| Horizontal Outreach | 33 ft 3 in (10 m) |
| Swing | 360 Degrees Continuous |
| Platform Capacity (Restricted) | 1,000 lb (454 kg) |
| Platform Capacity (Unrestricted) | 600 lb (272 kg) |
| Gradeability | 45% |
| Tilt Cut Out | 5 Degrees |
Dimensions 9 specs
| Platform Height | 40 ft (12.19 m) |
|---|---|
| Platform Width | 36 in (0.91 m) |
| Platform Length | 96 in (2.44 m) |
| Machine Width | 7 ft 6.8 in (2.31 m) |
| Tailswing | 2 ft 10 in (86 cm) |
| Machine Height | 8 ft 1.4 in (2.47 m) |
| Machine Length | 24 ft 10.1 in (7.57 m) |
| Wheelbase | 7 ft 9.5 in (2.37 m) |
| Ground Clearance | 12.1 in (31 cm) |
Weight 2 specs
| Weight | 13,640 lb (6,187 kg) |
|---|---|
| Max. Ground Bearing Pressure | 58 psi (4.19 kg/cm²) |
Power / Engine 3 specs
| Dual Fuel – Kubota WG2503 | 61 hp (45.5 kW) |
|---|---|
| Diesel Fuel – Deutz D2.9L4 Tier 4 Final | 49 hp (36.4 kW) |
| Auxiliary Power | 12 V DC |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 22 gal (83.3 L) |
|---|---|
| Hydraulic Reservoir | 36 gal (136.27 L) |
