General Aerial Work Platform · JLG

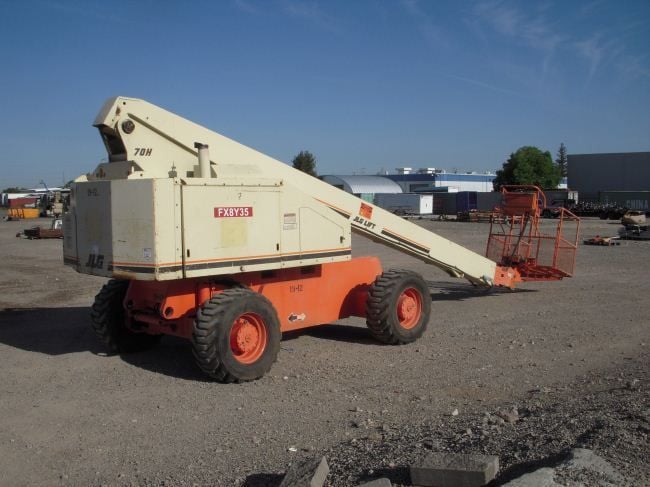

JLG 70H Specs
Quick-reference specifications for the JLG 70H boom lift, compiled from published specifications.
- Platform Capacity
- 500 lb227 kg
- Working Height
- 76.1 ft23.2 m
- Operating Weight
- 28,600 lb12,973 kg
Performance 8 specs
| Maximum Reach | 70 ft (21.3 m) |
|---|---|
| Working Height | 76.1 ft (23.2 m) |
| Maximum Horizontal Reach | 60 ft (18.3 m) |
| Platform Capacity | 500 lb (227 kg) |
| Boom Extension Time | 50-80 seconds |
| Boom Retraction Time | 40-60 seconds |
| Lift to Max Height Time | 25-40 seconds |
| Lower from Max Height Time | 20-30 seconds |
Dimensions 3 specs
| Overall Length | 30 ft 7 in (9.33 m) |
|---|---|
| Overall Width | 8 ft 0 in (2.44 m) |
| Stowed Height | 9 ft 2 in (2.79 m) |
Weight 1 spec
| Operating Weight | 28,600 lb (12,973 kg) |
|---|
