General Aerial Work Platform · JLG

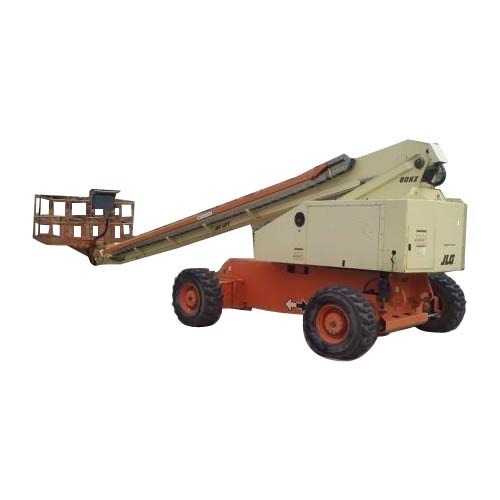

JLG 80H Specs

Quick-reference specifications for the JLG 80H boom lift, compiled from published specifications.

Platform Capacity (Unrestricted): 500 lb227 kg
Working Height: 86 ft 3 in26.3 m

Performance 3 specs

Working Height	86 ft 3 in (26.3 m)
Platform Capacity (Unrestricted)	500 lb (227 kg)
Swing	360° Continuous

Dimensions 5 specs

Transport Length	35 ft 3 in (10.74 m)
Transport Width	8 ft 6 in (2.59 m)
Transport Height	9 ft 9 in (2.97 m)
Platform Size	3 ft × 8 ft (0.91 m × 2.44 m)
Max. Horizontal Reach	70 ft 6 in (21.5 m)

Weight 1 spec

Gross Vehicle Weight	36,200 lb (16,420 kg)
