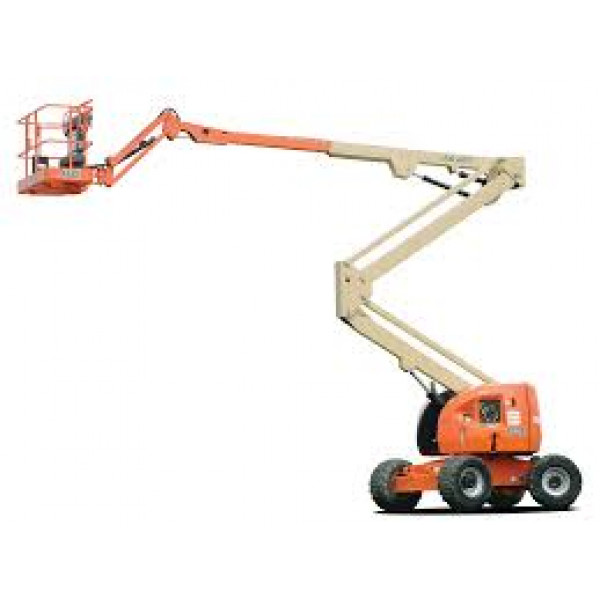

Articulating Boom Lift · JLG
JLG 450AJ Series II Specs
Quick-reference specifications for the JLG 450AJ Series II boom lift, compiled from published specifications.
- Max Platform Capacity (Unrestricted)
- 500 lb227 kg
- Gradeability 2WD
- 30%
Performance 11 specs
| Max Platform Height | 45 ft (13.72 m) |
|---|---|
| Max Horizontal Reach | 24 ft 6 in (7.47 m) |
| Up and Over Height | 24 ft 10 in (7.57 m) |
| Platform Swing | 360 Degrees Non-Continuous |
| Max Platform Capacity (Unrestricted) | 500 lb (227 kg) |
| Jib Length | 4 ft 1 in (1.24 m) |
| Jib Articulation Range | 144 Degrees (+74, -70) |
| Drive Speed 2WD | 3.5 mph (5.6 kph) |
| Drive Speed 4WD | 4.5 mph (7.2 kph) |
| Gradeability 2WD | 30% |
| Gradeability 4WD | 45% |
Dimensions 10 specs
| Platform Size | 30 x 72 in (0.76 x 1.83 m) |
|---|---|
| Stowed Height | 7 ft 5 in (2.26 m) |
| Stowed Length | 21 ft 5 in (6.53 m) |
| Overall Width 2WD | 6 ft 6 in (1.98 m) |
| Overall Width 4WD | 6 ft 10 in (2.08 m) |
| Wheelbase | 6 ft 6 in (1.98 m) |
| Ground Clearance | 14 in (36 cm) |
| Turning Radius Inside | 5 ft 8 in (1.73 m) |
| Turning Radius Outside | 14 ft (4.27 m) |
| Axle Oscillation | 8 in (20.4 cm) |
Weight 1 spec
| Gross Vehicle Weight 450AJ | 14,500 lb (6,577 kg) |
|---|
Power / Engine 4 specs
| Dual Fuel Engine | Ford LRG-425EFI 82 hp (61 kW) |
|---|---|
| Diesel Engine | Deutz F3M2011 47 hp (35 kW) |
| Fuel Tank Capacity | 16.5 gal (62.5 L) |
| Auxiliary Power | 12 V DC |
Hydraulics / Fluids 1 spec
| Hydraulic Reservoir Capacity | 30 gal (113.6 L) |
|---|
