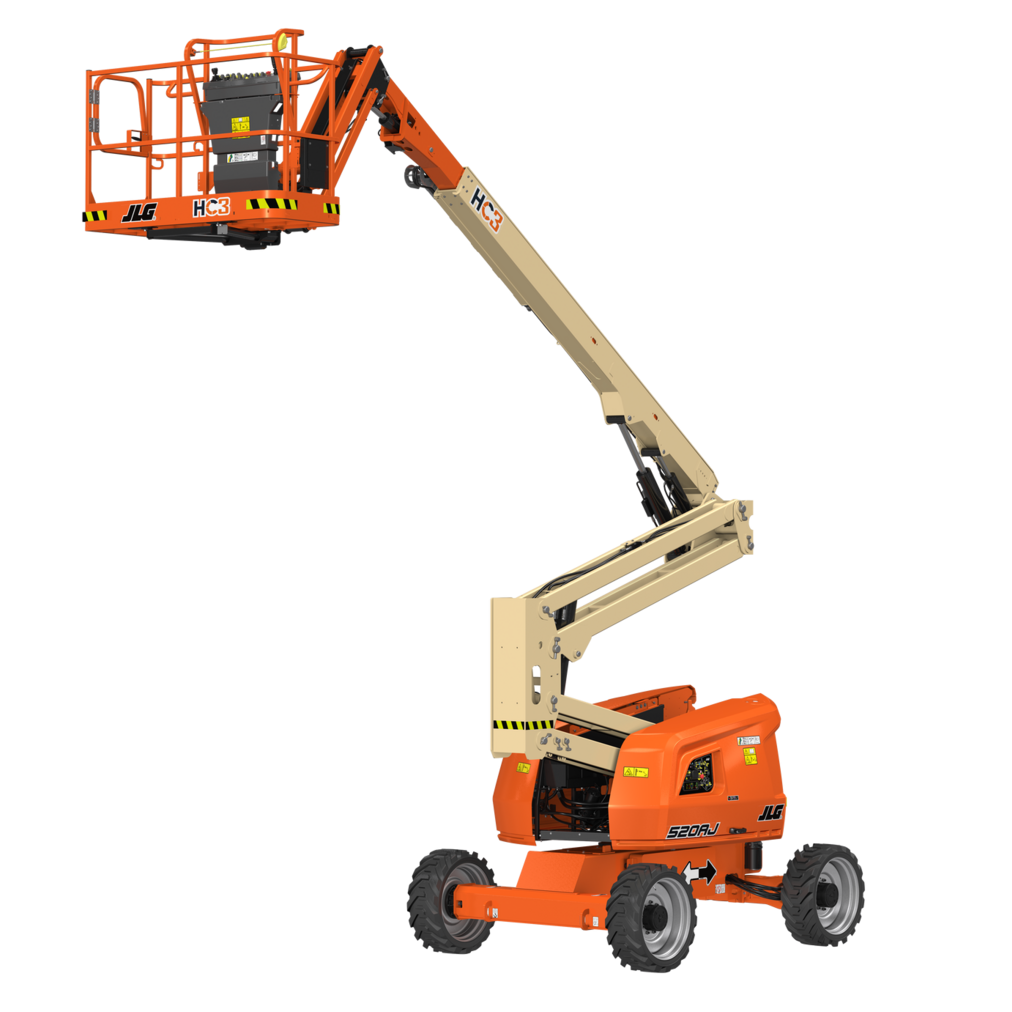

JLG 520AJ Specs
Quick-reference specifications for the JLG 520AJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 250 kg
- Working Height
- 18 m
- Weight
- 7,985 kg
- Gradeability
- 45%
Performance 11 specs
| Working Height | 18 m |
|---|---|
| Working Outreach | 10.65 m |
| Swing | 355 Degrees Non-Continuous |
| Platform Capacity | 250 kg |
| Jib | 1.24 m |
| Range of Articulation | 144 Degrees (+76, -69) |
| Drive Speed | 6.8 km/hr |
| Gradeability | 45% |
| Axle Oscillation | 10 cm |
| Turning Radius – Inside | 2.06 m |
| Turning Radius – Outside | 4.78 m |
Dimensions 7 specs
| Up and Over Height | 7.3 m |
|---|---|
| Platform Size | 0.76 x 1.83 m |
| Overall Width | 2.35 m |
| Stowed Height | 2.27 m |
| Stowed Length | 7.77 m |
| Wheelbase | 2.36 m |
| Ground Clearance | 0.42 m |
Weight 2 specs
| Weight | 7,985 kg |
|---|---|
| Max Ground Bearing Pressure | 6.6 kg/cm2 |
Power / Engine 2 specs
| Diesel Engine | Deutz D2.3 L3 Stage IIIA 36.4 kW |
|---|---|
| Auxiliary Power | 12 V-DC |
Hydraulics / Fluids 3 specs
| Fuel Tank Capacity | 60.5 L |
|---|---|
| Hydraulic System – System Capacity | 144 L |
| Hydraulic System – Tank Capacity | 136 L |
