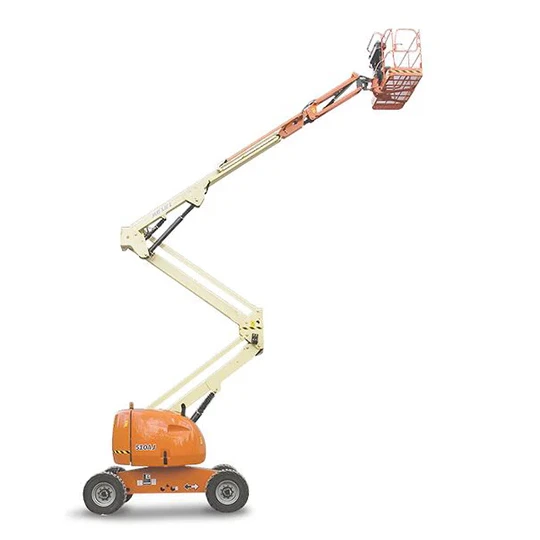

JLG 510AJ Spec Sheet
Quick-reference specifications for the JLG 510AJ. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity: 230 kg
Platform Height: 15.81 m
Outreach: 9.48 m
Overall Width: 2.26 m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| n/a Gradeability | 4WD |
|---|---|
| Capacity | 62.5 L |
| Platform Height | 15.81 m |
| Outreach | 9.48 m |
| Swing | 360º Non-Continuous |
| Platform Capacity | 230 kg |
| Jib Size | 1.24 m |
Dimensions
| Platform Size 0.76 x | 1.83 m |
|---|---|
| Overall Width | 2.26 m |
| Stowed Height | 2.26 m |
| Stowed Length | 7.68 m |
| Wheelbase | 2.34 m |
| Ground Clearance | 0.36 m |
| Height | 7.67 m |
Weights & Electrical
| Auxiliary Power | 12V DC |
|---|
Powertrain & Systems
| Chassis Drive Speed | 2WD |
|---|---|
| n/a Drive Speed | 4WD |
| Axle Oscillation | 0.20 m |
| Tyre Size 12 x | 16.5 |
| Diesel Engine Perkins | 404C-22 (37kW) |
Hydraulics & Capacities
| Reservoir | 114 L |
|---|---|
| Platform Rotator | 180º Hydraulic |
