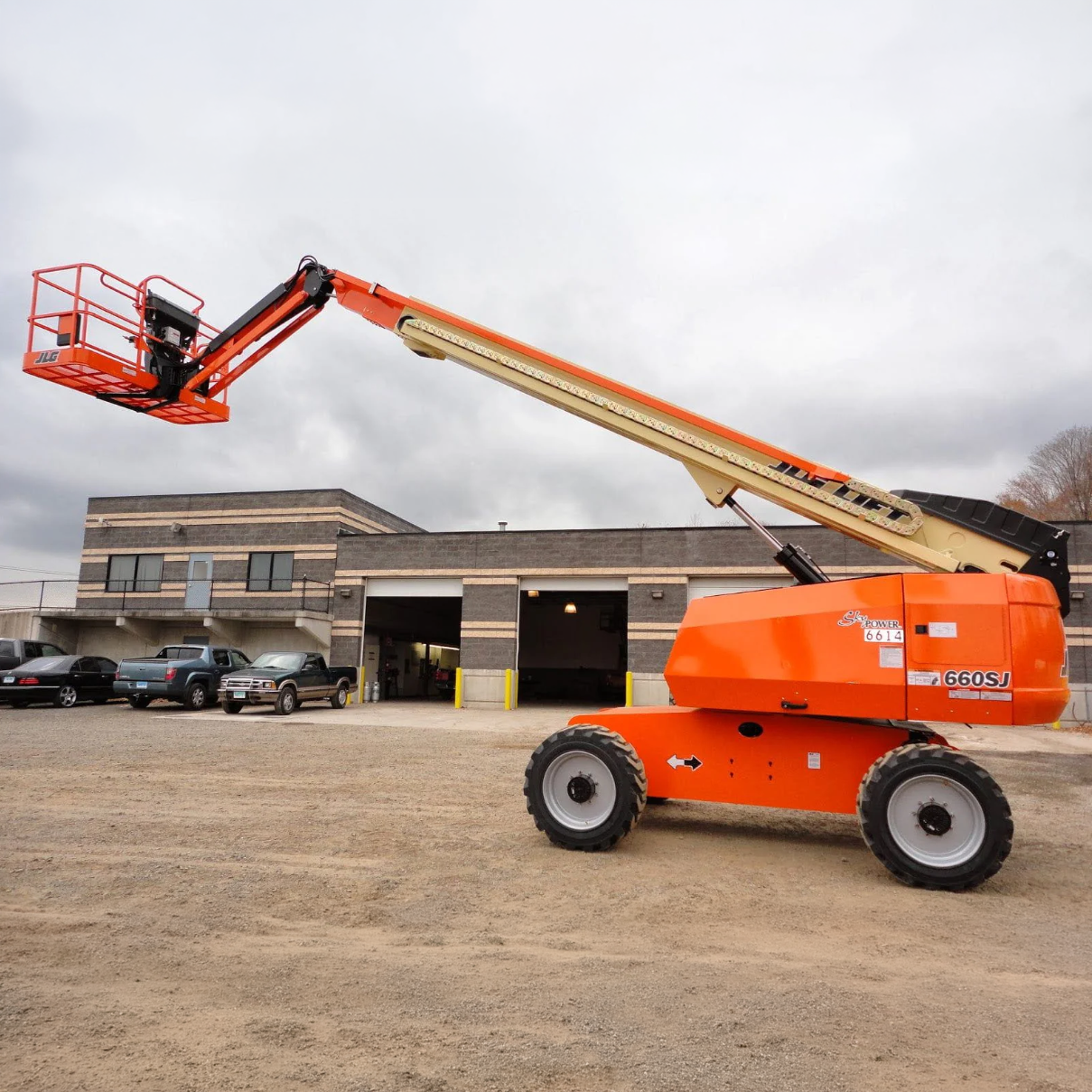

JLG 660SJ Spec Sheet
Quick-reference specifications for the JLG 660SJ. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity Restricted: 750-lb / 340-kg
Platform Height 65-ft 8-in /: 20.02-m
Horizontal Outreach 57-ft 1-in /: 17.40-m
Platform Capacity (Restricted) 750-lb /: 340-kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 65-ft 8-in / | 20.02-m |
|---|---|
| Horizontal Outreach 57-ft 1-in / | 17.40-m |
| Platform Capacity Restricted | 750-lb / 340-kg |
| Swing | 360 Degrees Continuous |
| Platform Capacity (Restricted) 750-lb / | 340-kg |
| Platform Capacity (Unrestricted) 550-lb / | 249-kg |
| Jib Length 6-ft / | 1.83-m |
| Jib Range of Articulation | 132 Degrees (+71, -61) |
| Gradeability | 45% |
| Turning Radius 2WS (Inside/Outside) Inside | 9-ft 7-in / 2.92-m Outside: 19-ft 7-in / 5.96-m |
| Turning Radius 4WS (Inside/Outside) Inside | 5-ft 3-in / 1.61-m Outside: 12-ft 8-in / 3.87-m |
| Tailswing 4-ft / | 1.22-m |
Dimensions
| Platform Width 36-in / | 0.91-m |
|---|---|
| Platform Length 96-in / | 2.44-m |
| Machine Width 8-ft 2-in / | 2.48-m |
| Machine Height 8-ft 5.4-in / | 2.58-m |
| Machine Length 33-ft 0.4-in / | 10.01-m |
| Wheelbase 8-ft 2.7-in / | 2.5-m |
| Ground Clearance 11.3-in / | 29-cm |
Weights & Electrical
| Auxiliary Power | 12V DC |
|---|
Powertrain & Systems
| Drive Speed 3.8 mph / | 6.1 km/h |
|---|---|
| Axle Oscillation 8-in / | 0.2-m |
Hydraulics & Capacities
| Platform Rotator | 180 Degrees Hydraulic |
|---|---|
| Max. Ground Bearing Pressure 86 psi / | 6.00 kg/cm² |
| Fuel Tank Capacity 31 gal / | 117 L |
| Hydraulic Reservoir 34 gal / | 129 L |
