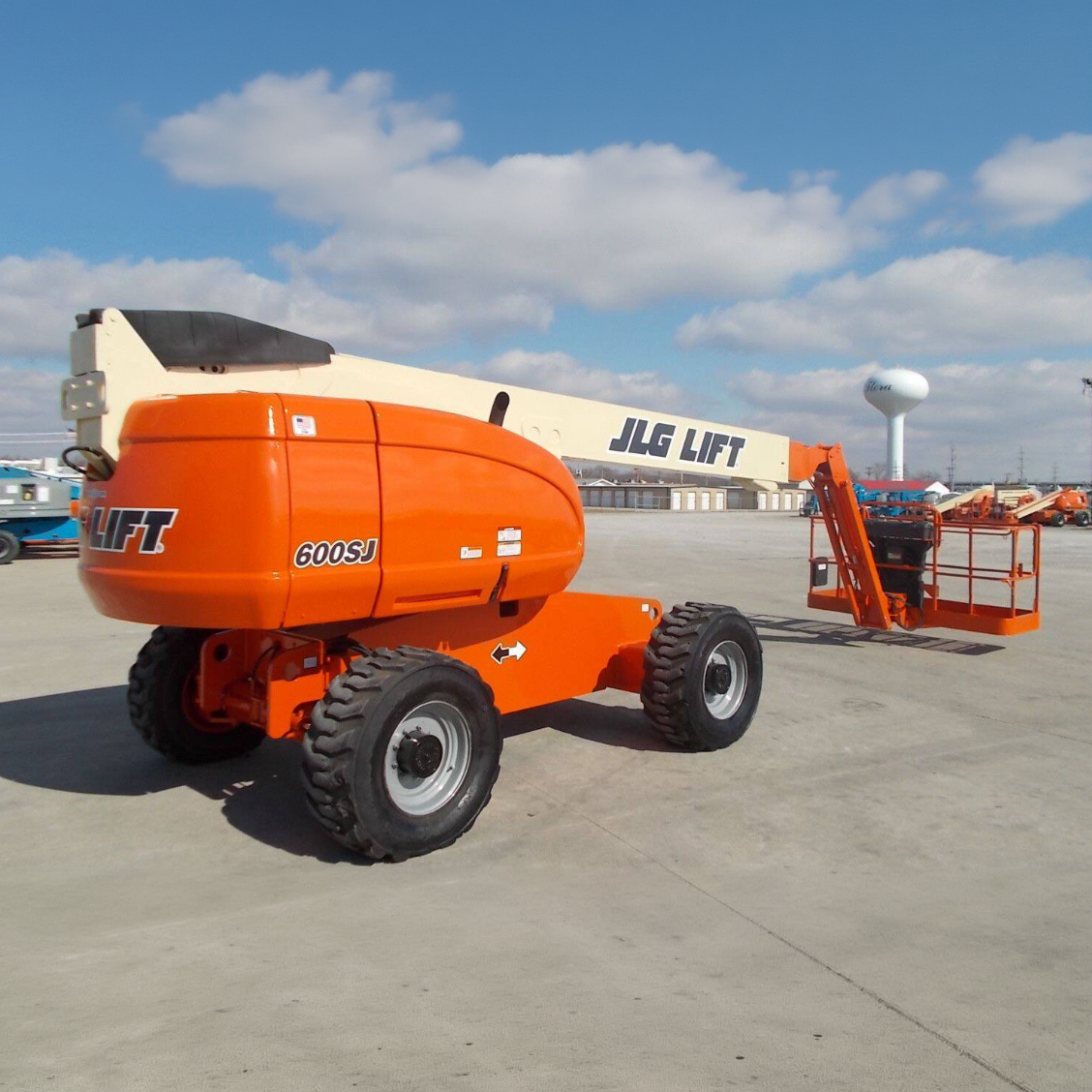

JLG 600SJ Specs

Quick-reference specifications for the JLG 600SJ boom lift, compiled from published specifications.

Max Platform Capacity: 500 lb226.8 kg
Operating Weight: 23,500 – 23,900 lb10,659 – 10,841 kg
Gradeability: 45%

Performance 8 specs

Max Platform Height	60 ft 3 in – 60 ft 4 in (18.36 – 18.42 m)
Max Horizontal Reach	50 ft 2 in – 50 ft 5 in (15.29 – 15.37 m)
Max Platform Capacity	500 lb (226.8 kg)
Platform Rotation	180 degrees
Max Speed	4.3 mph (6.9 km/h)
Gradeability	45%
Turning Radius	11.32 ft (3.45 m)
Swing	360 degrees

Dimensions 7 specs

Overall Length	31 ft 0 in (9.45 m)
Overall Width	7 ft 11 in – 8 ft 0 in (2.41 – 2.44 m)
Overall Height (Mast Lowered)	8 ft 4 in – 8 ft 5 in (2.54 – 2.57 m)
Wheelbase	8 ft 1 in (2.46 m)
Ground Clearance	11.82 in (30 cm)
Platform Inner Width	35.83 in (91 cm)
Platform Inner Length	96.07 in (2.44 m)

Weight 1 spec

Operating Weight	23,500 – 23,900 lb (10,659 – 10,841 kg)

Power / Engine 3 specs

Engine Model	F4M2011
Gross Power	64.4 hp (48.02 kW)
Fuel Capacity	39.9 gal (151 L)

Hydraulics / Fluids 2 specs

Hydraulic System Fluid Capacity	32 gal (121.12 L)
Tire Size	15 x 19.5
