Equipment Spec Sheet

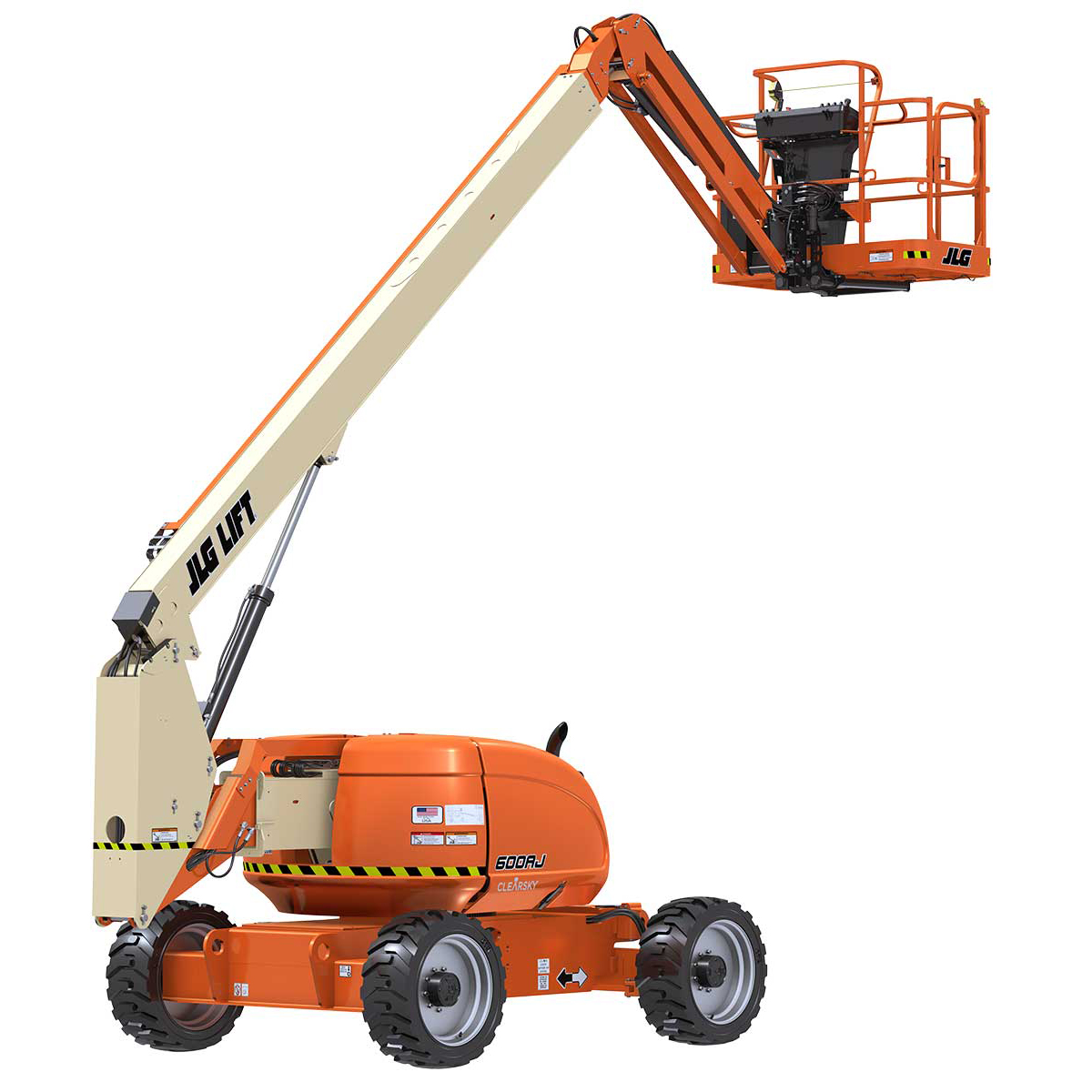

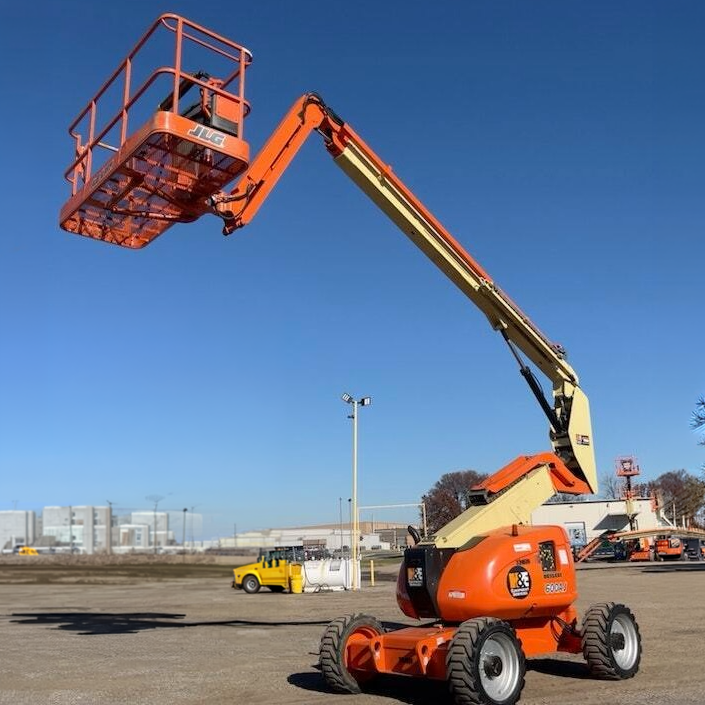

JLG 600AJ Spec Sheet
Quick-reference specifications for the JLG 600AJ. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity 500-lb /: 227-kg
Platform Height 60-ft 7-in /: 18.47-m
Horizontal Outreach 39-ft 9-in /: 12.10-m
Fuel Tank Capacity 30 gal /: 113.6 L
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 60-ft 7-in / | 18.47-m |
|---|---|
| Horizontal Outreach 39-ft 9-in / | 12.10-m |
| Up and Over Height 26-ft 7-in / | 8.1-m |
| Platform Capacity 500-lb / | 227-kg |
| Horizontal Outreach 39-ft 9-in / | 12.1-m |
| Swing | 360 Degrees Continuous |
| Jib Range of Articulation | 130 Degrees (+70, -60) |
| Gradeability 2WD / 4WD 30% / | 45% |
| Turning Radius 2WS Inside 10-ft 11-in / | 3.33-m |
| Turning Radius 2WS Outside 17-ft 8-in / | 5.38-m |
| Turning Radius 4WS Inside 4-ft 7-in / | 1.41-m |
| Turning Radius 4WS Outside 9-ft 7-in / | 2.92-m |
Dimensions
| Platform Width 36-in / | 0.91-m |
|---|---|
| Platform Length 96-in / | 2.44-m |
| Machine Width 8-ft 2-in / | 2.48-m |
| Machine Width – | 600AJN |
| Machine Height 8-ft 4-in / | 2.54-m |
| Machine Length 28-ft 11.5-in / | 8.83-m |
| Wheelbase 8-ft / | 2.44-m |
| Ground Clearance 12-in / | 30-cm |
Weights & Electrical
| Auxiliary Power | 12V DC |
|---|
Powertrain & Systems
| for fined work areas with a fuel- efficient Tier | 4 engine. |
|---|---|
| Drive Speed 4.25 mph / | 6.8 km/h |
| Axle Oscillation 8-in / | 20-cm |
Hydraulics & Capacities
| Platform Rotator | 180 Degrees Hydraulic |
|---|---|
| Max. Ground Bearing Pressure 75 psi / | 5.5-kg/cm² |
| Fuel Tank Capacity 30 gal / | 113.6 L |
| Capacity 30.6 gal / | 115.8 L |
