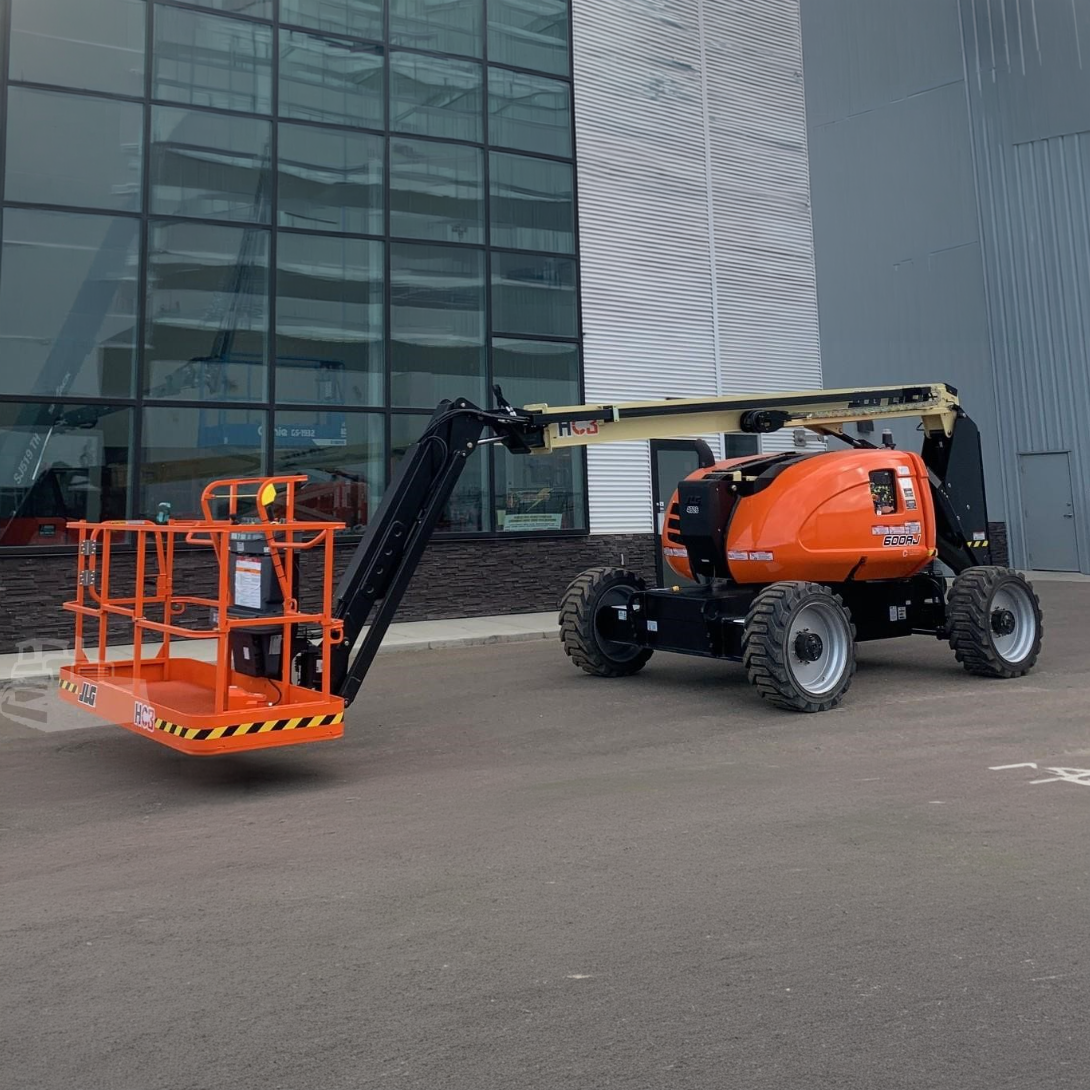

JLG 600AJ HC3 Spec Sheet
Quick-reference specifications for the JLG 600AJ HC3. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Platform Capacity 750/1000-lb /: 340/454-kg – Restricted
Platform Height 60-ft /: 18.3-m
Horizontal Outreach 40-ft 6.9-in /: 12.37-m
Platform Capacity – Restricted 750/1000-lb /: 340/454-kg
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Platform Height 60-ft / | 18.3-m |
|---|---|
| Horizontal Outreach 40-ft 6.9-in / | 12.37-m |
| Up and Over Height 26-ft 6.4-in / | 8.1-m |
| Platform Capacity 750/1000-lb / | 340/454-kg – Restricted |
| Swing | 360 Degrees Continuous |
| Platform Capacity – Restricted 750/1000-lb / | 340/454-kg |
| Platform Capacity – Unrestricted 660-lb / | 300-kg |
| Jib Range of Articulation | 130 Degrees (+70, -60) |
| Gradeability | 45% |
| Turning Radius Inside 7-ft 1-in / | 2.15-m |
| Turning Radius Outside 16-ft 11.3-in / | 5.17-m |
Dimensions
| Platform Width 36-in / | 0.91-m |
|---|---|
| Platform Length 96-in / | 2.44-m |
| Machine Width 8-ft 2.2-in / | 2.49-m |
| Machine Height 8-ft 5.5-in / | 2.58-m |
| Machine Length 30-ft / | 9.14-m |
| Wheelbase 8-ft 1.9-in / | 2.48-m |
| Ground Clearance 11.8-in / | 29-cm |
Weights & Electrical
| when the machine is on a slope that exceeds | 5 Degrees. |
|---|---|
| Auxiliary Power | 12V DC |
| Additional Accessories and Options Available Via JLG Aftermarket. Part No. | 3131126 | R0825_02 |
Powertrain & Systems
| Drive Speed 4 mph / | 6.45 km/h |
|---|---|
| Axle Oscillation 7.2-in / | 18.3-cm |
Hydraulics & Capacities
| Platform Rotator | 180 Degrees Hydraulic |
|---|---|
| Max. Ground Bearing Pressure 90 psi / | 6.2 kg/cm² |
| Fuel Tank Capacity 30 gal / | 113.6 L |
| Capacity 30.6 gal / | 115.8 L |
