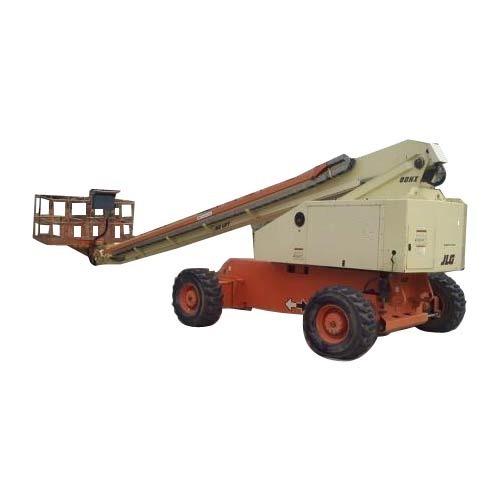

JLG 60HT Specs
Quick-reference specifications for the JLG 60HT boom lift, compiled from published specifications.
- Platform Capacity
- 500 lb227 kg
- Working Height
- 66 ft20.1 m
- Operating Weight
- 31,500 lb14,288 kg
Performance 6 specs
| Working Height | 66 ft (20.1 m) |
|---|---|
| Max Platform Height | 60 ft (18.3 m) |
| Max Horizontal Reach | 50 ft (15.2 m) |
| Platform Capacity | 500 lb (227 kg) |
| Persons Capacity | 2 |
| Swing | 360 degrees continuous |
Dimensions 3 specs
| Length | 28 ft 6 in (8.69 m) |
|---|---|
| Width | 6 ft 11 in (2.11 m) |
| Height | 7 ft 11 in (2.41 m) |
Weight 1 spec
| Operating Weight | 31,500 lb (14,288 kg) |
|---|
