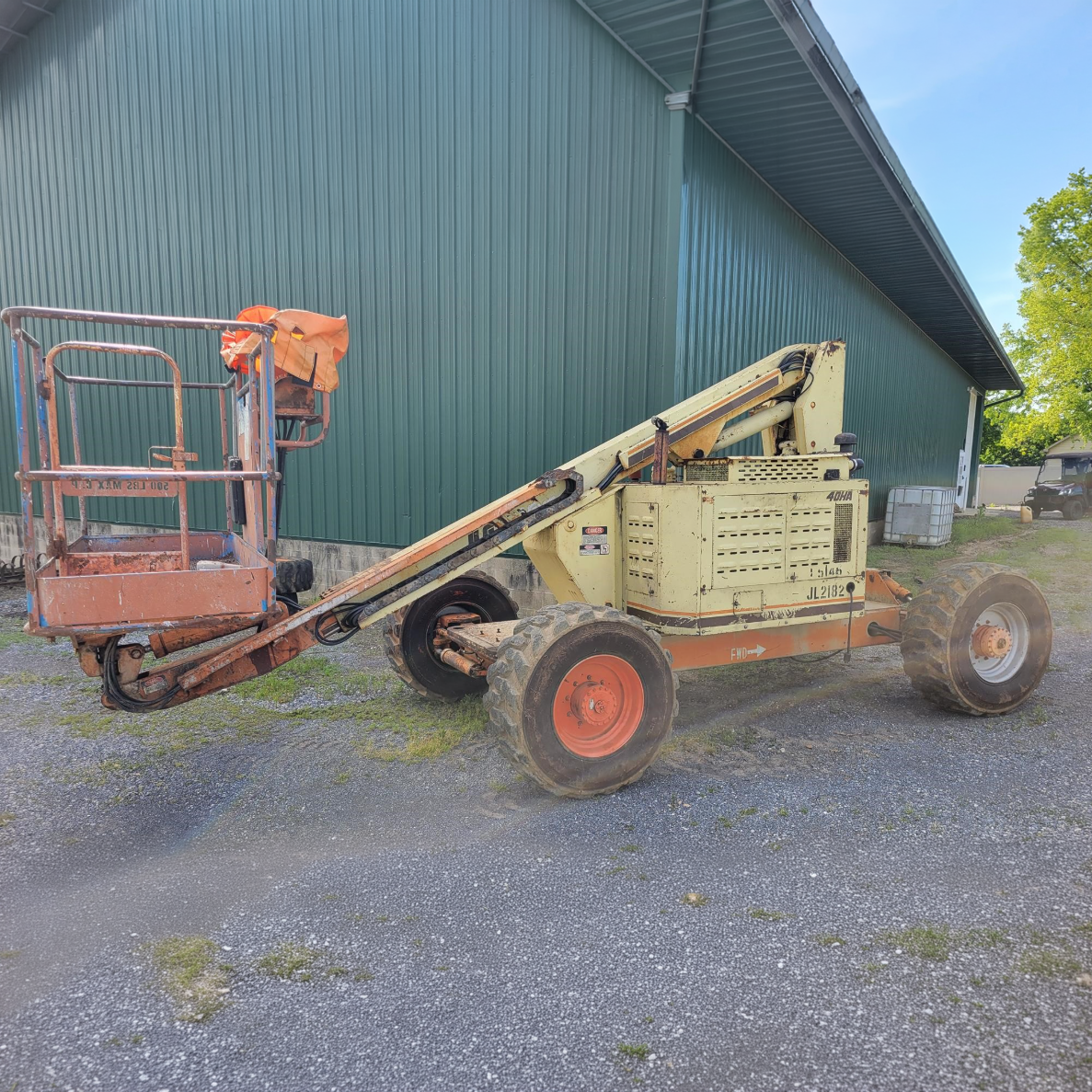

JLG 40HA Specs
Quick-reference specifications for the JLG 40HA boom lift, compiled from published specifications.
- Platform Capacity
- 500 lb227 kg
- Working Height
- 46 ft14.0 m
- Operating Weight
- 10,500 lb4,763 kg
Performance 3 specs
| Working Height | 46 ft (14.0 m) |
|---|---|
| Maximum Horizontal Reach | 23 ft 9 in (7.2 m) |
| Platform Capacity | 500 lb (227 kg) |
Dimensions 4 specs
| Overall Length | 17 ft 6 in (5.3 m) |
|---|---|
| Overall Width | 7 ft 11 in (2.4 m) |
| Overall Height | 7 ft 8 in (2.3 m) |
| Platform Size | 30 in × 60 in × 42 in (0.76 m × 1.52 m × 1.07 m) |
Weight 1 spec
| Operating Weight | 10,500 lb (4,763 kg) |
|---|
