Telescopic Boom Lift · JLG

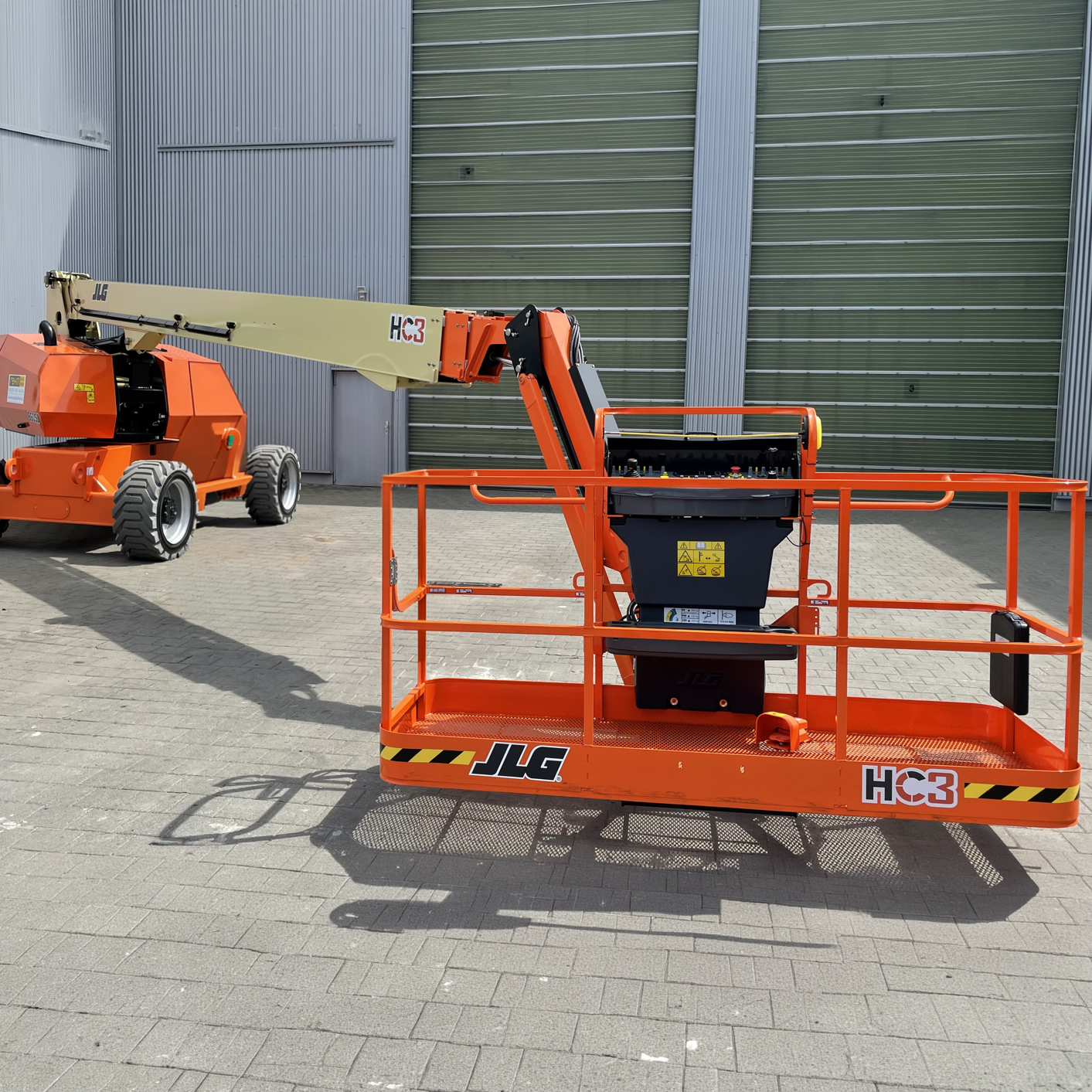

JLG 860SJ HC3 Specs
Quick-reference specifications for the JLG 860SJ HC3 boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity (Restricted)
- 750/1,000 lb340/454 kg
- Platform Height (Elevated)
- 86 ft26.21 m
- Platform Height
- 86 ft26.21 m
- Weight
- 38,040 lb17,255 kg
Performance 11 specs
| Horizontal Outreach | 74 ft 8.9 in (22.78 m) |
|---|---|
| Swing | 360 Degrees Continuous |
| Platform Capacity (Restricted) | 750/1,000 lb (340/454 kg) |
| Platform Capacity (Unrestricted) | 500 lb (227 kg) |
| Jib Range of Articulation | 131 Degrees (+70, -60) |
| Drive Speed | 4.13 mph (6.65 km/h) |
| Gradeability 2WD | 25% |
| Gradeability 4WD | 45% |
| Tilt Cut Out | 4 Degrees |
| Turning Radius (Inside) | 14 ft 7.7 in (4.5 m) |
| Turning Radius (Outside) | 21 ft 7 in (6.6 m) |
Dimensions 11 specs
| Platform Height (Elevated) | 86 ft (26.21 m) |
|---|---|
| Jib Length | 6 ft (1.83 m) |
| Platform Height | 86 ft (26.21 m) |
| Platform Width | 36 in (91 cm) |
| Platform Length | 96 in (2.44 m) |
| Machine Width | 8 ft 2 in (2.49 m) |
| Tailswing | 4 ft 8 in (1.42 m) |
| Machine Height | 9 ft 8.1 in (2.95 m) |
| Machine Length | 40 ft (12.19 m) |
| Wheelbase | 10 ft (3.05 m) |
| Ground Clearance | 11 in (28 cm) |
Weight 2 specs
| Weight | 38,040 lb (17,255 kg) |
|---|---|
| Max. Ground Bearing Pressure | 104.6 psi (7.4 kg/cm²) |
Power / Engine 2 specs
| Dual Fuel – Ford-MSG425-DF | 84 hp (62.6 kW) |
|---|---|
| Diesel Fuel – Deutz D2.9L4 Tier 4 Final | 67 hp (50 kW) |
Hydraulics / Fluids 1 spec
| Fuel Tank Capacity | 31 gal (117.35 L) |
|---|
