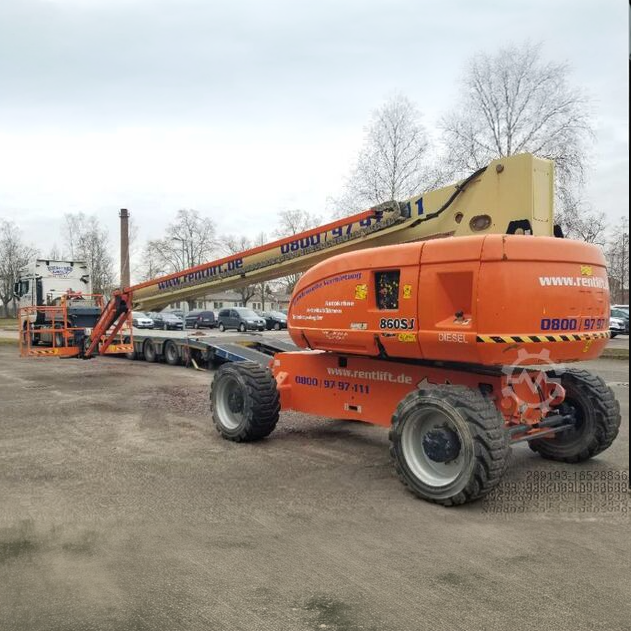

JLG 860SJ Specs
Quick-reference specifications for the JLG 860SJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity (Restricted)
- 750 lb340 kg
- Platform Height (Elevated)
- 86 ft26.21 m
- Platform Height
- 86 ft26.21 m
- Weight
- 36,840 lb16,710 kg
Performance 11 specs
| Drive Speed | 3.5 mph (5.6 km/h) |
|---|---|
| Horizontal Outreach | 75 ft (22.86 m) |
| Swing | 360 Degrees Continuous |
| Platform Capacity (Restricted) | 750 lb (340 kg) |
| Platform Capacity (Unrestricted) | 500 lb (227 kg) |
| Jib Range of Articulation | 131 Degrees (+70, -60) |
| Gradeability 2WD | 25% |
| Gradeability 4WD | 45% |
| Tilt Cut Out | 4 Degrees |
| Turning Radius (Inside) | 12 ft 6 in (3.8 m) |
| Turning Radius (Outside) | 19 ft 8 in (6.02 m) |
Dimensions 11 specs
| Platform Height | 86 ft (26.21 m) |
|---|---|
| Platform Height (Elevated) | 86 ft (26.21 m) |
| Jib Length | 6 ft (1.83 m) |
| Platform Width | 36 in (91 cm) |
| Platform Length | 96 in (2.44 m) |
| Machine Width | 8 ft 2 in (2.49 m) |
| Tailswing | 4 ft 8 in (1.42 m) |
| Machine Height | 9 ft 8.1 in (2.95 m) |
| Machine Length | 40 ft (12.19 m) |
| Wheelbase | 10 ft (3.05 m) |
| Ground Clearance | 11 in (28 cm) |
Weight 2 specs
| Weight | 36,840 lb (16,710 kg) |
|---|---|
| Max. Ground Bearing Pressure | 81 psi (5.69 kg/cm²) |
Power / Engine 2 specs
| Dual Fuel – Ford-MSG425-DF | 84 hp (62.6 kW) |
|---|---|
| Diesel Fuel – Deutz D2.9L4 Tier 4 Final | 67 hp (50 kW) |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 31 gal (117.35 L) |
|---|---|
| Hydraulic System – Capacity | 48 gal (181.7 L) |
