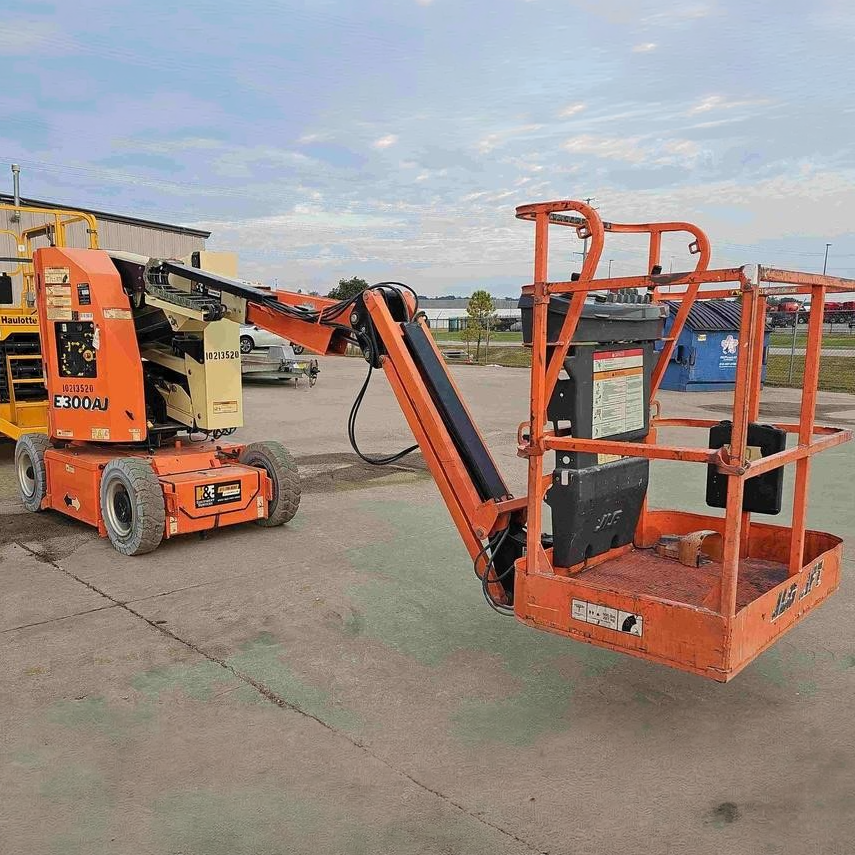

JLG E300A Specs
Quick-reference specifications for the JLG E300A boom lift, compiled from published specifications.
- Platform Capacity (Unrestricted)
- 500 lb227 kg
- Gradeability (Grade)
- 25%
Performance 11 specs
| Platform Capacity (Unrestricted) | 500 lb (227 kg) |
|---|---|
| Max Platform Height | 30 ft (9.14 m) |
| Horizontal Platform Reach (Up & Over) | 20 ft (6.1 m) |
| Platform Rotation | 180 degrees |
| Swing | 360 degrees non-continuous |
| Gradeability (Grade) | 25% |
| Drive Speed (High Drive) | 45-50 sec / 200 ft (61 m) |
| Drive Speed (Above Horizontal) | 55-68 sec / 50 ft (15.2 m) |
| Jib Range of Articulation | 141 degrees |
| Maximum System Voltage | 48 VDC |
| Max Main Relief Hydraulic Pressure | 2500 psi (172.3 bar) |
Dimensions 7 specs
| Machine Width | 4 ft (1.22 m) |
|---|---|
| Turning Radius (Outside) | 10 ft (3.05 m) |
| Turning Radius (Inside) | 5 ft (1.52 m) |
| Platform Dimensions | 30 x 48 in (0.76 x 1.22 m) |
| Stowed Height | 6 ft 7 in (2.01 m) |
| Overall Length | 17 ft 4 in (5.28 m) |
| Ground Clearance | 4 in (10 cm) |
Weight 1 spec
| Gross Machine Weight | 14,300 lb (6,487 kg) |
|---|
Power / Engine 1 spec
| Batteries | 8 x 6 V, 370 amp-hour |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic Reservoir | 2.1 gallons |
|---|
