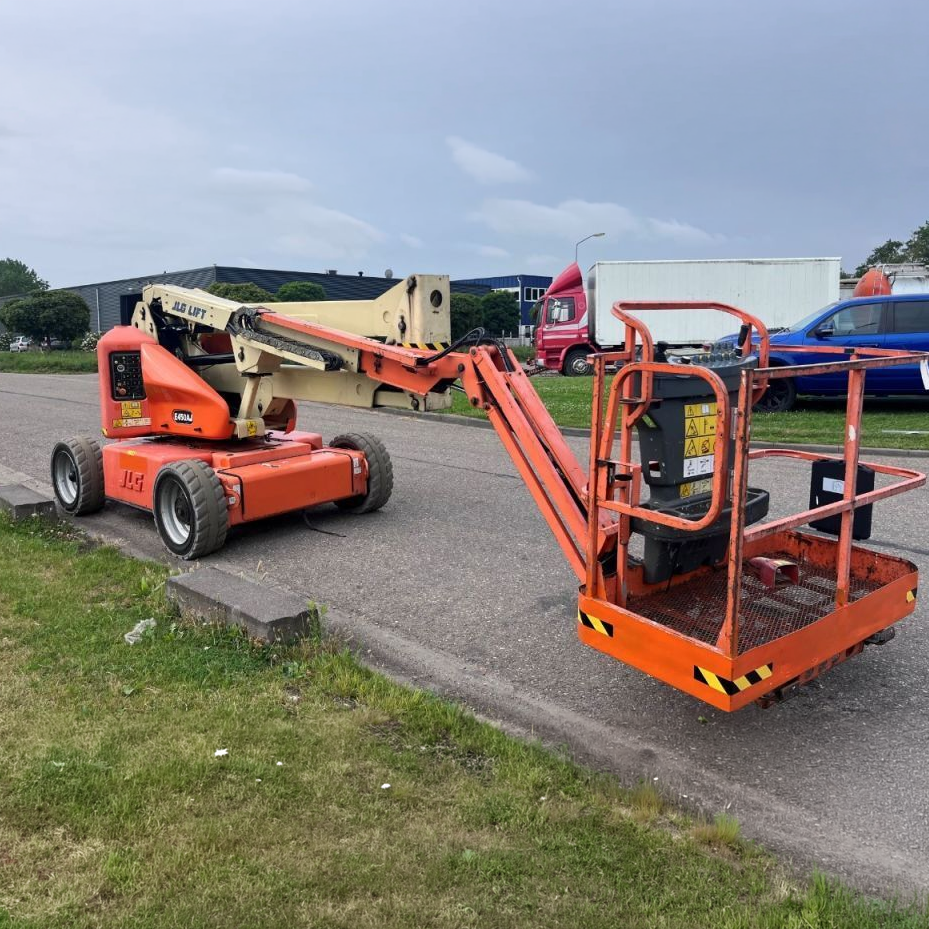

JLG E450AJ Specs
Quick-reference specifications for the JLG E450AJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 45 ft13.72 m
- Weight
- 14,400 lb6,532 kg
- Gradeability
- 30%
Performance 10 specs
| Horizontal Outreach | 23 ft 9 in (7.24 m) |
|---|---|
| Up and Over Reach | 25 ft 3 in (7.7 m) |
| Platform Capacity | 500 lb (227 kg) |
| Up and Over Clearance | 25 ft 3 in (7.7 m) |
| Swing | 360 Degrees Non-Continuous |
| Jib Range of Articulation (Vertical) | 141 Degrees (+86, -55) |
| Max Drive Speed | 4.5 mph (7.2 km/h) |
| Gradeability | 30% |
| Turning Radius Inside (2WS/4WS) | 2 ft (.61 m) |
| Turning Radius Outside (2WS/4WS) | 10 ft 4 in (3.15 m) |
Dimensions 9 specs
| Platform Height | 45 ft (13.72 m) |
|---|---|
| Platform Width | 30 in (76 cm) |
| Platform Length | 60 in (1.52 m) |
| Machine Width | 5 ft 9 in (1.75 m) |
| Tailswing | 0 in (0 cm) |
| Machine Height | 6 ft 7 in (2.01 m) |
| Machine Length | 21 ft 2 in (6.45 m) |
| Wheelbase | 6 ft 7 in (2.01 m) |
| Ground Clearance | 8 in (20 cm) |
Weight 2 specs
| Weight | 14,400 lb (6,532 kg) |
|---|---|
| Ground Bearing Pressure | 110 psi (7.6 kg/cm²) |
Power / Engine 1 spec
| Batteries | 8 x 6 V, 375 amp-hr |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic System – Capacity | 4 gal (15.14 L) |
|---|
