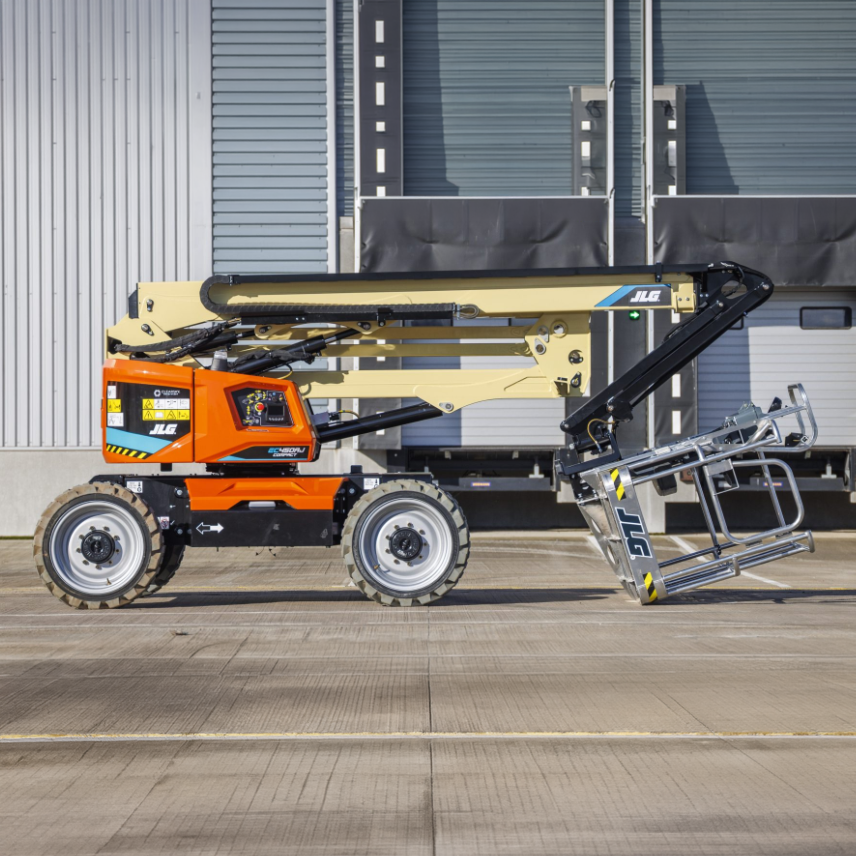

Articulating Boom Lift · JLG
JLG EC450AJ Compact Specs
Quick-reference specifications for the JLG EC450AJ Compact boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 250 kg
- Platform Height
- 13.9 m
- Working Height
- 15.9 m
Performance 12 specs
| Working Height | 15.9 m |
|---|---|
| Working Outreach | 8.9 m |
| Platform Capacity | 250 kg |
| Horizontal Outreach | 8.25 m |
| Swing Non-Continuous | 355° |
| Platform Capacity – Unrestricted | 250 kg |
| Jib – Range of articulation | 145° (+76, -69) |
| Tilt cut out | 5° (8.7%) |
| Occupied floor area | 5.36 m2 |
| Drive Speed | 4.8 kmh |
| Turning Radius – Outside | 4.5 m |
| Max pressure | 210 bar |
Dimensions 10 specs
| Up and Over Height | 6.85 m |
|---|---|
| Platform Height | 13.9 m |
| Jib – Overall Length | 1.24 m |
| Platform Size | 0.85 m x 1.8 m |
| Overall Width | 2 m |
| Stowed Length | 6.2 m |
| Wheelbase | 1.88 m |
| Ground Clearance | 0.36 m |
| Transport length (jib tucked under boom) | 4.82 m |
| Transport height (jib tucked under boom) | 2.21 m |
Weight 2 specs
| Machine weight | 5500 kg |
|---|---|
| Maximum Ground Bearing Pressure | 4.59 kg/cm2 |
Power / Engine 2 specs
| Power system | 48 V Nominal |
|---|---|
| Platform charger | 12 V |
Hydraulics / Fluids 3 specs
| Platform Rotator (Hydraulic) | 180° |
|---|---|
| AC electric driven gear pump | 31 L |
| Hydraulic Oil | Hydraulic Oil 230 V Electric |
