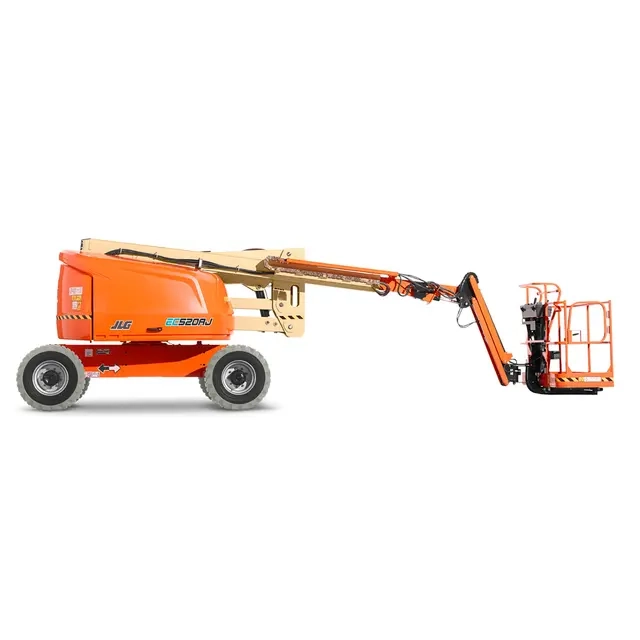

JLG EC520AJ Specs
Quick-reference specifications for the JLG EC520AJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 250 kg
- Platform Height
- 16.0 m
- Working Height
- 18.00 m
- Gradeability- 2WD
- 30%
Performance 12 specs
| Working Height | 18.00 m |
|---|---|
| Horizontal Outreach | 10.00 m |
| Platform Capacity | 250 kg |
| Drive Speed | 5 km/h |
| Working Outreach | 10.65 m |
| Swing Non-Continuous | 355° |
| Platform Capacity – Unrestricted | 250 kg |
| Jib – Range of articulation | 145° (+76°/ -69°) |
| Occupied floor area | 7.5 m2 |
| Gradeability- 2WD | 30% |
| Turning Radius – Inside | 2.06 m |
| Turning Radius – Outside | 4.78 m |
Dimensions 9 specs
| Platform Height | 16.0 m |
|---|---|
| Up and Over Height | 7.30 m |
| Jib – Overall Length | 1.24 m |
| Stowed Height | 2.27 m |
| Stowed Length | 7.77 m |
| Wheelbase | 2.36 m |
| Platform Size | 0.76 m x 1.83 m |
| Overall Width | 2.26 m |
| Ground Clearance | 0.42 m |
Weight 2 specs
| Machine weight | 7,760 kg |
|---|---|
| Maximum Ground Bearing Pressure | 6.6 kg/cm2 |
Power / Engine 1 spec
| Power System | 48 V-DC |
|---|
Hydraulics / Fluids 2 specs
| Platform Rotator (Hydraulic) | 180° |
|---|---|
| Hydraulic Reservoir Pump | 30 L |
