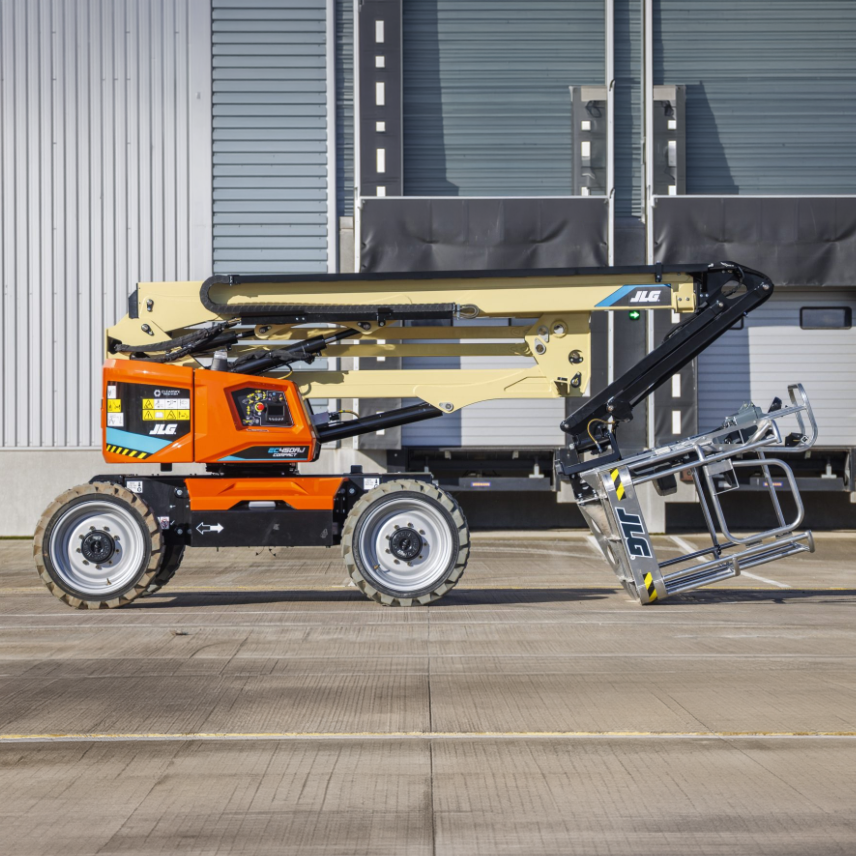

JLG EC450AJ Specs
Quick-reference specifications for the JLG EC450AJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 250 kg
- Platform Height
- 13.72 m
- Working Height
- 15.72 m
- Gradeability
- 30%
Performance 11 specs
| Working Height | 15.72 m |
|---|---|
| Horizontal Outreach | 7.62 m |
| Platform Capacity | 250 kg |
| Drive Speed | 4.8 km/h |
| Working Outreach | 8.27 m |
| Swing Non-Continuous | 355° |
| Platform Capacity – Unrestricted | 250 kg |
| Jib – Range of articulation | 145° (+76°/ -69°) |
| Occupied floor area | 7.5 m2 |
| Gradeability | 30% |
| Turning Radius – Inside | 2.06 m |
Dimensions 7 specs
| Platform Height | 13.72 m |
|---|---|
| Up and Over Height | 7.30 m |
| Jib – Overall Length | 1.24 m |
| Platform Width | 0.76 m |
| Stowed Length | 6.58 m |
| Wheelbase | 2.36 m |
| Ground Clearance | 0.42 m |
Weight 2 specs
| Machine weight | 6,270 kg |
|---|---|
| Maximum Ground Bearing Pressure | 4.0 kg/cm2 |
Power / Engine 2 specs
| Power System | 51.2 V DC |
|---|---|
| Platform charger | 12 V |
Hydraulics / Fluids 2 specs
| Platform Rotator (Hydraulic) | 180° |
|---|---|
| Gear Pump | 30 L |
