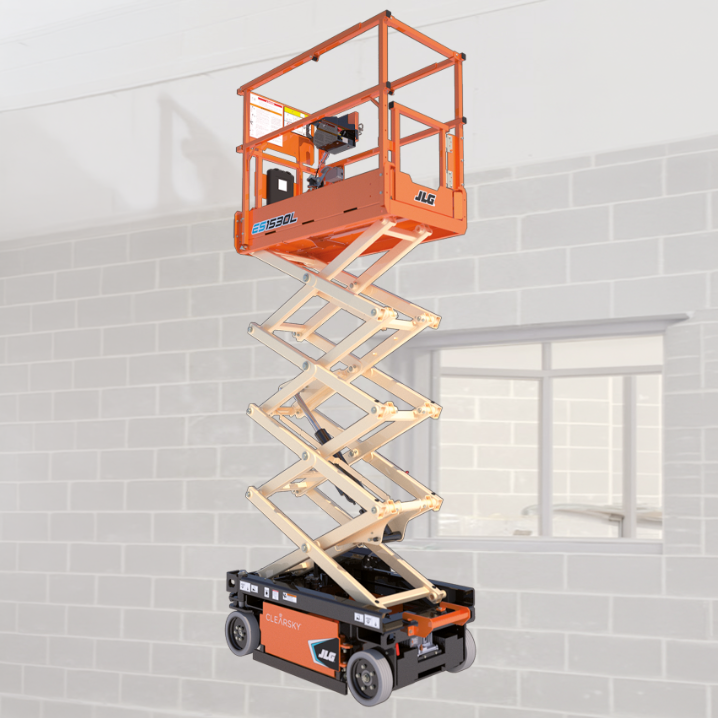

JLG ES1530L Specs
Quick-reference specifications for the JLG ES1530L scissor lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Capacity on Platform Extension
- 250 lb115 kg
- Platform Height (Lowered)
- 31.1 in0.8 m
- Gradeability
- 25%
Performance 11 specs
| Number of Occupants | 1 |
|---|---|
| Platform Capacity | 500 lb (227 kg) |
| Capacity on Platform Extension | 250 lb (115 kg) |
| Lift / Lower Time (No Load) | 19/19 seconds |
| Lift / Lower Time (Rated Load) | 22/17 seconds |
| Drive Speed (Lowered) | 2.4 mph (3.8 km/h) |
| Drive Speed (Raised) | 0.5 mph (0.8 km/h) |
| Gradeability | 25% |
| Max Tilt Rating (Fore and Aft) | 3 Degrees |
| Stowed Drive Speed | 2.4 mph (3.8 km/h) |
| Platform Extension | 21.6 in (55 cm) |
Dimensions 9 specs
| Machine Width | 30 in (76 cm) |
|---|---|
| Machine Length | 56.2 in (1.4 m) |
| Wheelbase | 42.3 in (1.1 m) |
| Ground Clearance | 2.4 in (6 cm) |
| Platform Height (Lowered) | 31.1 in (0.8 m) |
| Platform Railing Height | 43.3 in (1.1 m) |
| Machine Height | 74.8 in (1.9 m) |
| Platform Width | 24.4 in (.6 m) |
| Platform Length | 49.2 in (1.3 m) |
Weight 1 spec
| Max. Ground Bearing Pressure | 116 psi (8.1 kg/cm²) |
|---|
Power / Engine 2 specs
| Batteries | 2 x 12 V 105 amp-hr |
|---|---|
| Drive | 24 V Electric |
