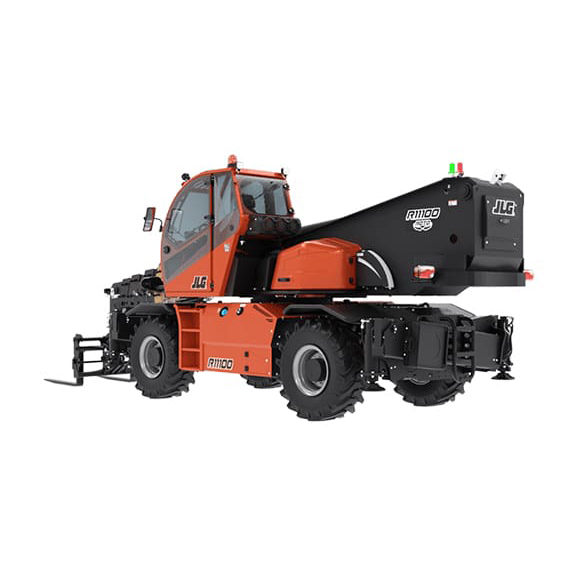

JLG R11100 Specs
Quick-reference specifications for the JLG R11100 telehandler, taken from the manufacturer’s spec sheet.
- Rated Capacity
- 11,000 lb5,000 kg
- Maximum Lift Height
- 97 ft29.6 m
- Maximum Forward Reach
- 86 ft26 m
- Operating Weight
- 52,650 lb23,882 kg
Performance 11 specs
| Full rotation of the upper frame | Hydrostatic 2-speed |
|---|---|
| Rated Capacity | 11,000 lb (5,000 kg) |
| Maximum Forward Reach | 86 ft (26 m) |
| Load at Max Reach | 300 lb (140 kg) |
| Frame Leveling | ±6 Degrees |
| Lift Speed (boom retracted) – Down | 9.5 seconds |
| Boom Speed – Extended | 29 seconds |
| Boom Speed – Retracted | 14 seconds |
| Top Travel Speed (Foam-Filled) | 12.4 mph (20 km/h) |
| Drawbar Pull (loaded) | 22,500 lb (100 kN) |
| Outside Turning Radius | 14 ft 5 in (4.4 m) |
Dimensions 7 specs
| Maximum Lift Height | 97 ft (29.6 m) |
|---|---|
| Load at Max Height | 4,400 lb (1,900 kg) |
| Machine Height | 121.9 in (3095 mm) |
| Ground Clearance | 16.5 in (420 mm) |
| Machine Length | 330.7 in (8400 mm) |
| Machine Width | 98.4 in (2500 mm) |
| Wheelbase | 129.9 in (3300 mm) |
Weight 1 spec
| Operating Weight | 52,650 lb (23,882 kg) |
|---|
Power / Engine 4 specs
| FPT NEF-N4.5 Tier 4B | 4 |
|---|---|
| Displacement | 274 cu in (4.5 L) |
| Gross Power Basic | 168 hp (125 kW) |
| Maximum Torque @ 1,500 rpm | 524 lb-ft (710 Nm) |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 58.1 gal (220 L) |
|---|---|
| Hydraulic System-Implement – Capacity | 84.5 gal (320 L) |
