Articulating Boom Lift · JLG

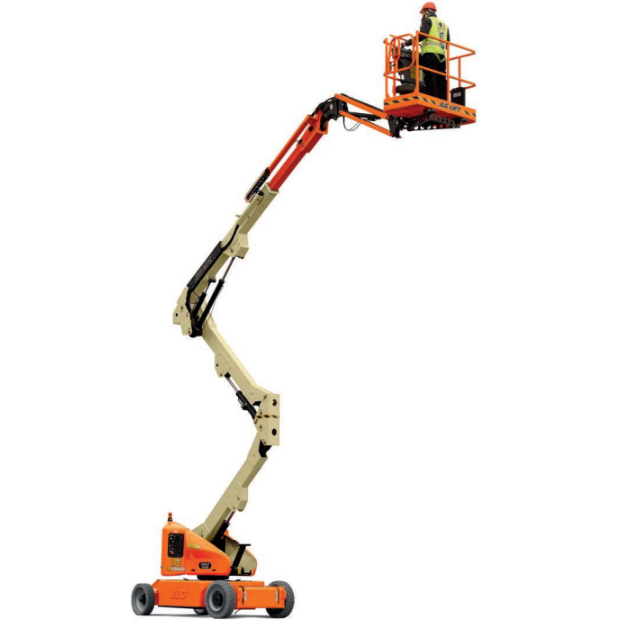

JLG M400A Specs

Quick-reference specifications for the JLG M400A boom lift, compiled from published specifications.

Max Working Height: 40 ft
Operating Weight: 13,099.9 lb5,940 kg

Performance 4 specs

Max Speed	3 mph
Max Working Height	40 ft
Max Horizontal Reach	21.17 ft
Platform Rotation	180 degrees

Dimensions 8 specs

Overall Length	18.05 ft
Overall Width	4.93 ft
Overall Height – Mast Lowered	6.47 ft
Wheelbase	6.57 ft
Ground Clearance	5.12 in
Turning Radius	10.34 ft
Platform Inner Width	29.93 in
Platform Inner Length	48.04 in

Weight 2 specs

Operating Weight	13,099.9 lb (5,940 kg)
Max Platform Weight Capacity	500.45 lb (227 kg)

Power / Engine 3 specs

System Voltage	48 V DC
Number of Batteries	8 x 6 V
Battery Amp Hours	370
