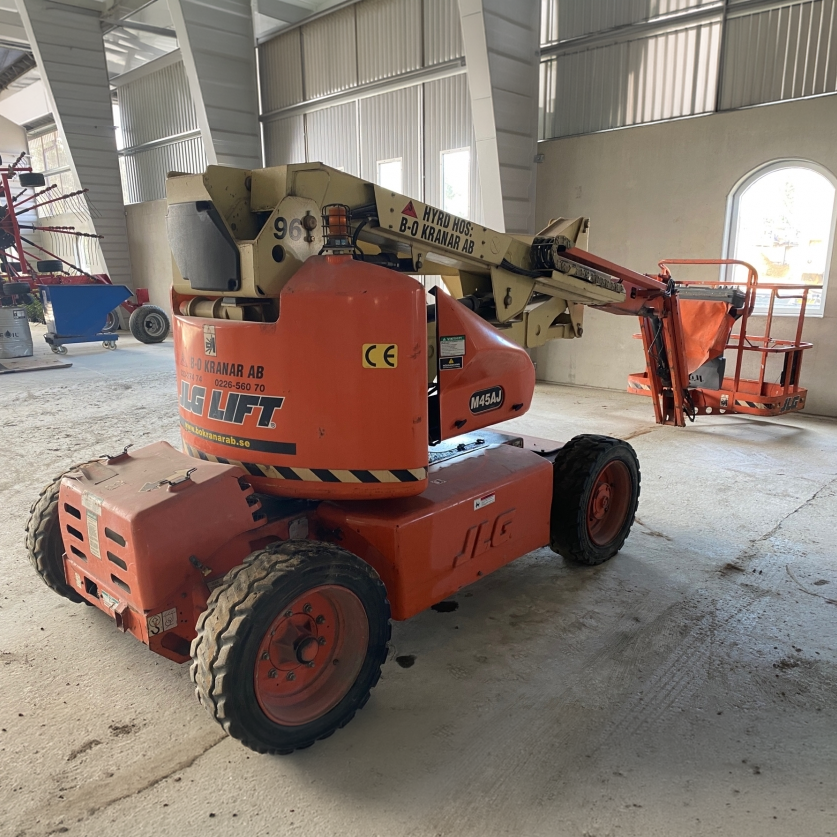

JLG M45AJ Spec Sheet
Quick-reference specifications for the JLG M45AJ. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
Working Height 51 ft.: 0 in. (15.54 m)
Up and Over Platform Height M45A, E45A – 24 ft.: 7 in. (7.49 m)
Machine Weight E45A -: 12,600 lb. (5,720 kg)
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| Travel Speed | 3.2 mph (5.2 kph) |
|---|---|
| Gradeability | 30% (16.7 degrees) |
| Turning Radius (Inside) 2ft. | 0 in. (0.61 m) |
| Turning Radius (Curb to Curb) 10 ft. | 4 in. (3.15 m) |
| Upper Boom Speed Lift Up – | 27 seconds |
| Lower Boom Speed Lift Up – | 30 seconds |
| Lift Down – 24 seconds. Swing Speed – | 360 Degrees |
| Up and Over Platform Height M45A, E45A – 24 ft. | 7 in. (7.49 m) |
| Working Height 51 ft. | 0 in. (15.54 m) |
| Platform Height 45 ft. | 0 in. (13.72 m) |
| Telescope In – 28-23 seconds Swing Left 360° – | 81-67 seconds* |
| Swing Right 360° – | 81-67 seconds* Rotate Left 180° – 17-14 seconds |
| Tower Lift Down – 26-22 seconds Jib Up – | 25-26 seconds |
| Jib Down – 24-25 seconds Telescope Out – | 12-9 seconds |
| Telescope In – 19-15 seconds Swing Left 360° – | 81-67 seconds* |
Dimensions
| Machine Height (stowed) M45A, E45A – 6 ft. | 6.25 in. (1.99 m) |
|---|---|
| Machine Length (stowed) M45A, E45A – 18 ft. | 8.0 in. (5.69 m) |
| Machine Width 5 ft. | 9 in. (1.75 m) |
| Track Width 5 ft. | 0 in. (1.51 m) |
| Ground Clearance M45, E45 – | 8.5 in. (0.22 m) |
Weights & Electrical
| Port Macquarie, Australia Telephone | 065 811111 |
|---|---|
| Electrical Components Installation – Sheet | 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-20 |
| Electrical Components Installation – Sheet | 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-21 |
| Platform Electrical Schematic – Sheet 1 of | 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-22 |
| Platform Electrical Schematic – Sheet 2 of | 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-23 |
| Battery Charger Input, | 110 VAC,60 HZ |
| Output, | 48 VDC (25 Amps) Batteries (8) |
| Drive System Drive Motor – 48 VDC, | 12.5 H.P. @ 3200 rpm. continuous, |
| Generator Alternator Output – | 58 volts @ 45 Amps |
| Start Battery – 12 volts Engine Oil – | 10W30 (Refer to Engine Manual) |
| Dynamo – 12 volt, 15 amp DC Dynamo Output Fuse – | 20 amps DC |
| Control Fuse – 15 amps DC | 1.3 |
| Machine Weight E45A – | 12,600 lb. (5,720 kg) |
| System Voltage | 48 volts |
| Battery Life per Charge | 7 hours continuous |
| Battery Recharge Time Charger – | 17 hours from full discharge |
Powertrain & Systems
| JLG INDUSTRIES, INC. | 1 JLG Drive |
|---|---|
| Drive Axle Torque Hubs – | 19 oz. (0.5 liters) |
| Max. Tire Load M45A, E45A – | 6100 lbs. (2,767 kg) |
| Rotate Right 180° – | 18-15 seconds High Drive – Fwd. & Rev. (200 ft.) – 42-44 seconds** |
Hydraulics & Capacities
| Hydraulic Schematic – M45A/E45A – Sheet 1 of | 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-28 |
|---|---|
| Hydraulic Schematic – M45A/E45A – Sheet 2 of | 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-29 |
| Hydraulic Schematic – M45AJ/E45AJ – Sheet 1 of | 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-30 |
| Hydraulic Schematic – M45AJ/E45AJ – Sheet 2 of | 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-31 |
| Hydraulic Oil Tank | 5 gallons (19 liters) |
| Generator Fuel Tank | 4 gallons (15.1 liters) |
| Tire Pressure – | 90 psi (6.2 Bar) |
| Hydraulic Pump/Electric Motor Assembly Motor – 48 VDC, | 2.14 H.P. @ 2700 rpm. |
| Pump – | 0.098 in.[3]/rev. (1.6 cm[3]/rev.). Pump Output – 2.96 gpm (11.2 lpm) @ 3200 psi (222 Bar). |
| Ground Bearing Pressure M45A, E45A – | 95 psi (6.2 Bar) |
| M45AJ, E45AJ – | 110 psi (7.6 Bar) |
