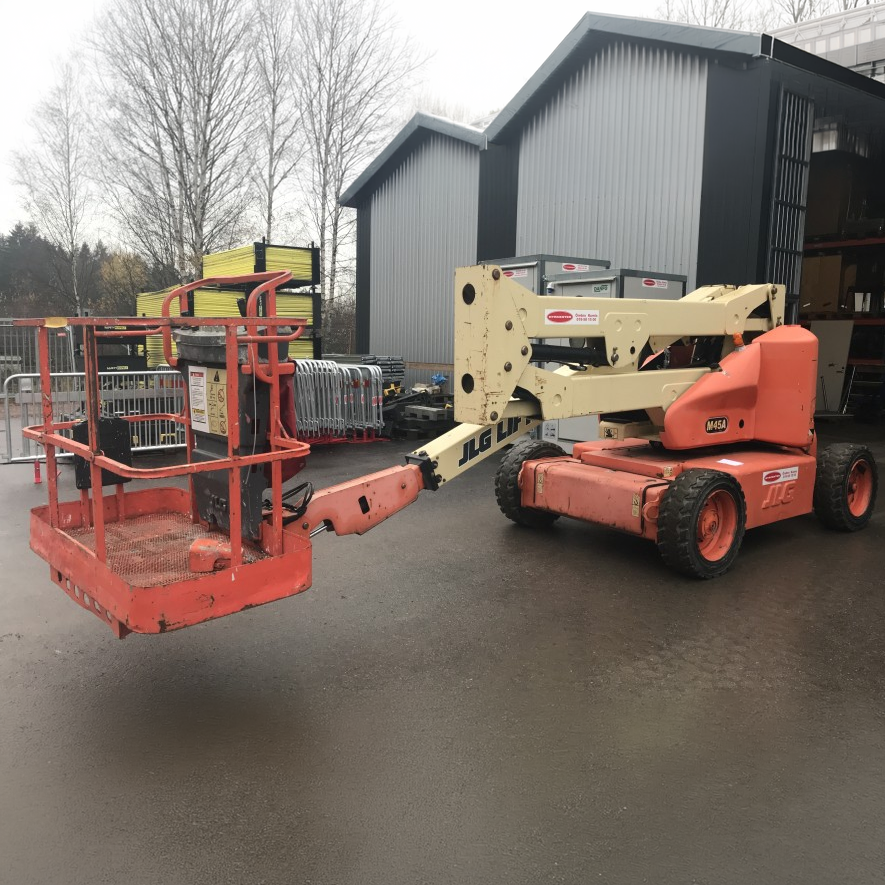

JLG M45A Specs
Quick-reference specifications for the JLG M45A boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 45 ft13.72 m
- Gradeability
- 30%
Performance 7 specs
| Horizontal Outreach | 22 ft 8 in (6.91 m) |
|---|---|
| Swing | 360 Degrees Non-Continuous |
| Platform Capacity | 500 lb (227 kg) |
| Drive Speed | 3.3 mph (5.6 kph) |
| Gradeability | 30% |
| Turning Radius (Inside) | 22 in (56 cm) |
| Turning Radius (Outside) | 121 in (3.07 m) |
Dimensions 9 specs
| Platform Height | 45 ft (13.72 m) |
|---|---|
| Up and Over Height | 24 ft 7 in (7.49 m) |
| Platform Size | 30 x 60 in (0.76 x 1.52 m) |
| Overall Width | 5 ft 9 in (1.75 m) |
| Stowed Height | 6 ft 5 in (1.95 m) |
| Stowed Length | 18 ft 8 in (5.69 m) |
| Wheelbase | 6 ft 7 in (2.01 m) |
| Ground Clearance | 8.5 in (22 cm) |
| Tire Size/Type | 240/55-17.5 pneumatic |
Weight 1 spec
| Gross Vehicle Weight | 12,500 lb (5,670 kg) |
|---|
Power / Engine 4 specs
| Batteries | 8 x 6 V 370 amphr |
|---|---|
| Drive Motors | Dual Electric Traction |
| Brakes | Automatic Spring Applied Multiple Discs |
| Engine Fuel Tank | 4 gal (15.2 L) |
Hydraulics / Fluids 1 spec
| Hydraulic Reservoir | 4 gal (15.2 L) |
|---|
