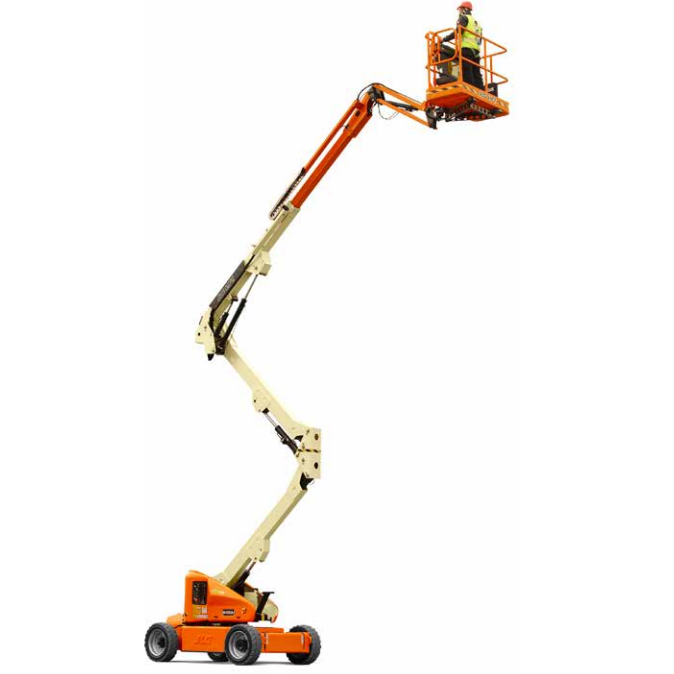

JLG M450A Specs
Quick-reference specifications for the JLG M450A boom lift, compiled from published specifications.
- Platform Capacity
- 500 lb226.8 kg
- Platform Height
- 45 ft13.72 m
- Gradeability
- 30%
Performance 12 specs
| Platform Height | 45 ft (13.72 m) |
|---|---|
| Horizontal Outreach | 23 ft 1 in (7.04 m) |
| Up and Over Height | 24 ft 7 in (7.49 m) |
| Swing | 360° Non-continuous |
| Platform Capacity | 500 lb (226.8 kg) |
| Platform Rotation | 180° Hydraulic |
| Gradeability | 30% |
| Max Travel Grade (Side Slope) | 5° |
| Drive Speed | 3.2 mph (5.15 km/h) |
| Turning Radius (Outside) | 15 ft 3 in (4.65 m) |
| Turning Radius (Inside) | 2 ft (0.61 m) |
| Ground Bearing Pressure | 64 psi (4.5 kg/cm²) |
Dimensions 8 specs
| Machine Length (Stowed) | 18 ft 8 in (5.69 m) |
|---|---|
| Machine Width | 5 ft 9 in (1.75 m) |
| Machine Height (Stowed) | 6 ft 6.25 in (1.9 m) |
| Wheelbase | 6 ft 7 in (2.00 m) |
| Ground Clearance | 8.5 in (0.22 m) |
| Platform Dimension A | 2 ft 6 in (0.76 m) |
| Platform Dimension B | 5 ft (1.52 m) |
| Track Width | 5 ft (1.51 m) |
Power / Engine 5 specs
| Battery Life per Charge | 7 hours continuous |
|---|---|
| Generator Power Output | 6.7 hp (5 kW) |
| Generator Fuel Tank Capacity | 4 gal (15.14 L) |
| Charger Type | 20 amp automatic battery charger |
| Battery Recharge Time (Generator) | 6.2 hours |
Hydraulics / Fluids 2 specs
| Hydraulic Reservoir Capacity | 4 gal (15.14 L) |
|---|---|
| System Voltage | 48 volts DC |
