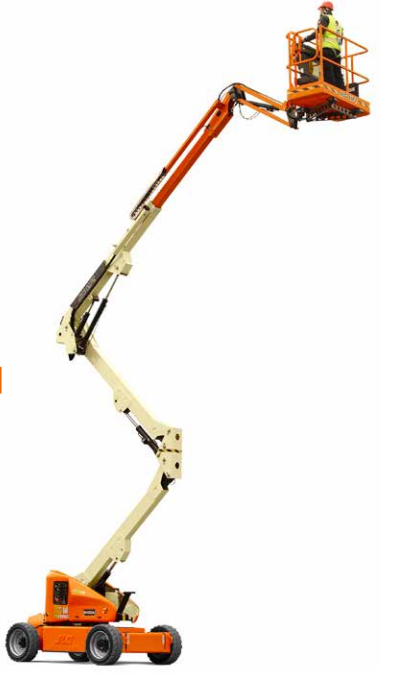

JLG M450AJ Specs
Quick-reference specifications for the JLG M450AJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity – Unrestricted
- 230 kg
- Working Height
- 15.72 m
- Gradeability
- 30%
Performance 9 specs
| Working Height | 15.72 m |
|---|---|
| Working Outreach | 7.89 m |
| Swing (non-continuous) | 360° |
| Platform Capacity – Unrestricted | 230 kg |
| Jib – Range of articulation | 144° (+84°/ -60°) |
| Drive Speed | 5.2 km/h |
| Gradeability | 30% |
| Turning Radius – Inside | 0.61 m |
| Turning Radius – Outside | 3.15 m |
Dimensions 8 specs
| Up and Over Height | 7.70 m |
|---|---|
| Jib – Overall Length | 1.24 m |
| Platform Size | 0.76 m x 1.52 m |
| Overall Width | 1.75 m |
| Stowed Height | 2.01 m |
| Stowed Length | 6.45 m |
| Wheelbase | 2.01 m |
| Ground Clearance | 0.20 m |
Weight 2 specs
| Machine weight | 6,700 kg |
|---|---|
| Maximum Ground Bearing Pressure | 5.3 kg/cm2 |
Power / Engine 2 specs
| Batteries – deep cycle | 8 x 6 V 370 A/hr |
|---|---|
| Drive Motors | Dual AC Traction |
Hydraulics / Fluids 1 spec
| Platform Rotator (Hydraulic) | 180° |
|---|
