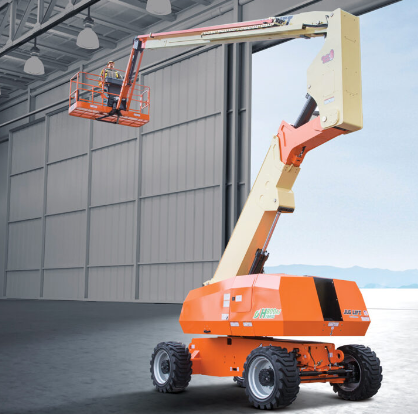

JLG H800AJ Specs
Quick-reference specifications for the JLG H800AJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 80 ft24.38 m
- Weight
- 35,520 lb16,110 kg
- Gradeability 4WD
- 45%
Performance 8 specs
| Horizontal Outreach | 51 ft 10 in (15.8 m) |
|---|---|
| Swing | 360 Degrees Continuous |
| Platform Capacity | 500 lb (227 kg) |
| Jib Range of Articulation | 130 Degrees (+70, –60) |
| Drive Speed Lowered | 3.45 mph (5.55 km/h) |
| Drive Speed Elevated | 0.27 mph (0.43 km/h) |
| Gradeability 4WD | 45% |
| Axle Oscillation | 8 in (20.4 cm) |
Dimensions 2 specs
| Platform Height | 80 ft (24.38 m) |
|---|---|
| Up and Over Height | 32 ft 1 in (9.78 m) |
Weight 2 specs
| Weight | 35,520 lb (16,110 kg) |
|---|---|
| Ground Bearing Pressure | 76 psi (5.3 kg/cm²) |
Power / Engine 4 specs
| Diesel Engine – Kubota Tier 4 Final | 25 hp (18.6 kW) |
|---|---|
| Motor/Generator Power | 30 hp (22.3 kW) |
| System Voltage | 84 V |
| Battery Quantity | 14 |
Hydraulics / Fluids 1 spec
| Fuel Tank Capacity | 25 gal (94.64 L) |
|---|
