Boom Lift Spec Sheet

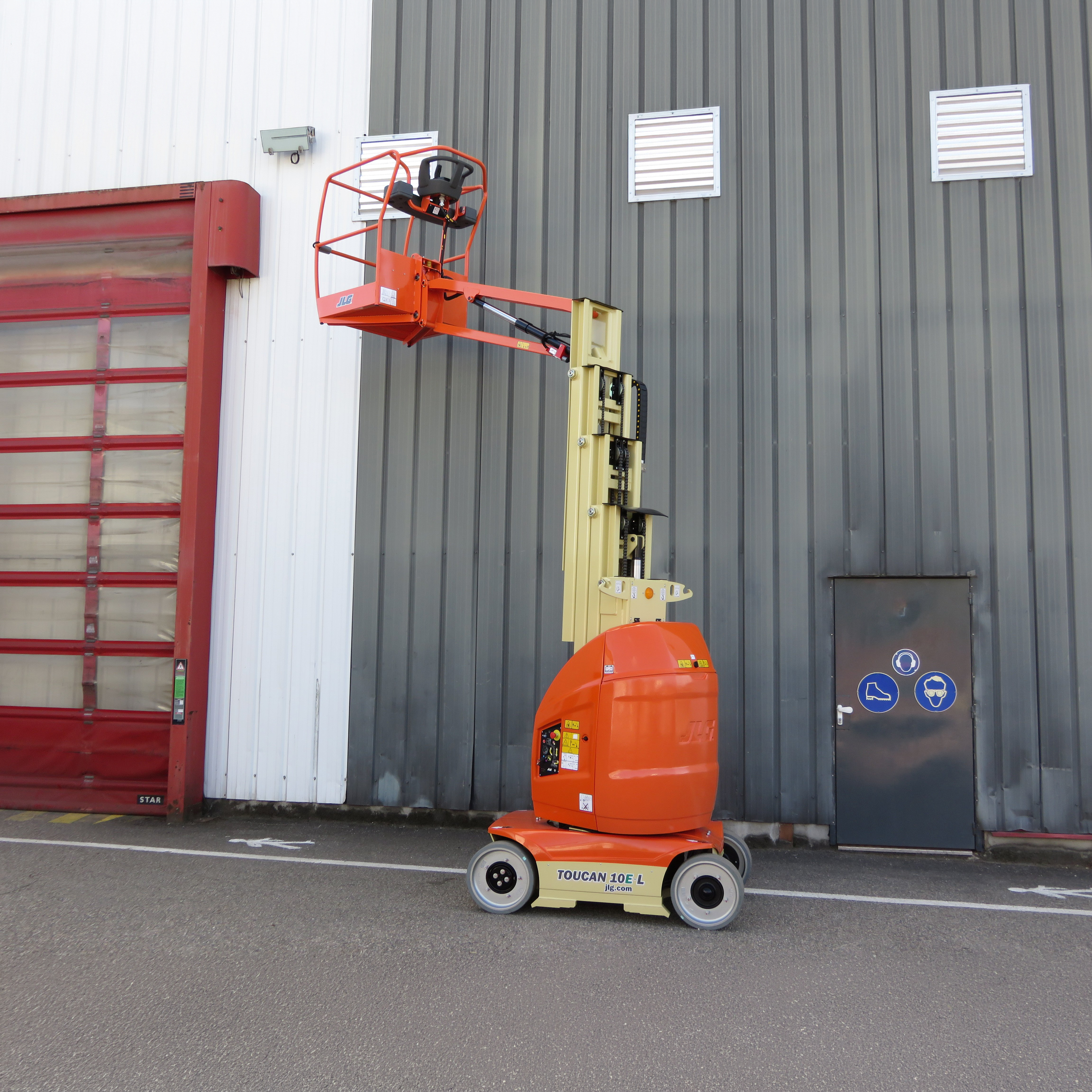

JLG Toucan 10E Spec Sheet
Quick-reference specifications for the JLG Toucan 10E. Includes extracted performance, dimensions, capacities, and other details found in the source PDF.
B. Overall width: 0.99 m
D. Stowed height: 1.99 m
E. Overall length (standard platform): 2.82 m
BHESPECS note: Specs can vary by configuration, serial range, and market. Always confirm against the machine data plate and the source PDF.
Performance
| C. Tailswing | 12 cm |
|---|
Dimensions
| A. Platform size standard platform (L x W) 0.70 x | 0.90 m |
|---|---|
| B. Overall width | 0.99 m |
| D. Stowed height | 1.99 m |
| E. Overall length (standard platform) | 2.82 m |
| F. Wheelbase | 1.20 m |
| G. Ground clearance | 10 cm |
Powertrain & Systems
| forklift-style mast and versatile articulating jib. | 1 Included with circuit breaker on AC cable to platform option. NB 110V or 230V power must be specified |
|---|
