Mast Boom Lift Spec Sheet

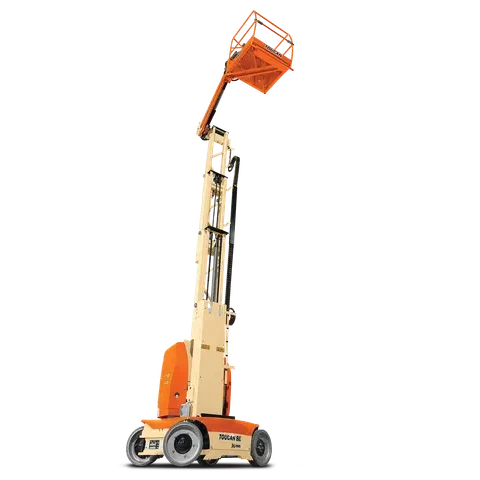

JLG Toucan 8E Spec Sheet
Quick-reference specifications for the JLG Toucan 8E mast boom lift. Includes key performance, dimensions, weights, electrical, and hydraulic capacity (when listed in the source spec sheet).
BHESPECS note: Specs can vary by configuration/market. Always confirm with the machine data plate and the exact PDF you’re referencing.
Performance
| Working Height | 8.20 m |
|---|---|
| Working Outreach (Standard Platform) | 2.65 m |
| Up & Over Height | 5.08 m |
| Swing (Not Continuous) | 345° |
| Platform Capacity | 200 kg |
| Jib – Overall Length | 1.17 m |
| Jib – Articulation Range | 112° (+45° / -67°) |
| Drive Speed (Lowered) | 5.5 km/h |
| Gradeability | 25% |
| Turning Radius (Outside) | 1.99 m |
| Turning Radius (Inside) | 0.55 m |
Dimensions
| Platform Size (L × W) | 0.85 × 0.92 m |
|---|---|
| Overall Width | 0.99 m |
| Overall Length (Standard Platform) | 2.10 m |
| Stowed Height | 1.99 m |
| Tailswing | 17 cm |
| Wheelbase | 1.20 m |
| Ground Clearance | 10 cm |
Weights & Ground Pressure
| Machine Weight (Standard Platform) | 2,100 kg |
|---|---|
| Max Ground Bearing Pressure | 17.2 kg/cm² |
Electrical & Drive
| Electrical System | 24V DC |
|---|---|
| Batteries | AGM, 24V – 213 Ah |
| Charger | 24V – 27A |
| Drive Motors | Dual AC motors |
| Electrical (Pump) Motor | 3 kW, 24V DC |
| Tyres | Non-marking solid, 406 × 125 mm |
Lubricants & Fluids
Hydraulic Oil (Option): Food Compatible
Hydraulic Oil (Option): Low Temperature
Hydraulic Oil (Option): Synthetic Biodegradable
If you publish region-specific versions, confirm oil type requirements for your market/climate.
Notes: The spec sheet lists multiple hydraulic oil options. Use the PDF below as the source of truth for the exact fluid type and any service intervals.
Standard Features (Highlights)
- 0.85 m × 0.92 m steel platform with slide-bar rear entry
- Heavy duty steel roller mast with 345° rotation
- 1.17 m articulating jib
- Two-wheel direct electric drive (brushless AC drive motors)
- Load sensing system, drive orientation system, on-board diagnostics
- 2.5° tilt alarm with indicator light; passive pothole protection
- AC power cable to platform; horn; hour meter; battery discharge indicator
