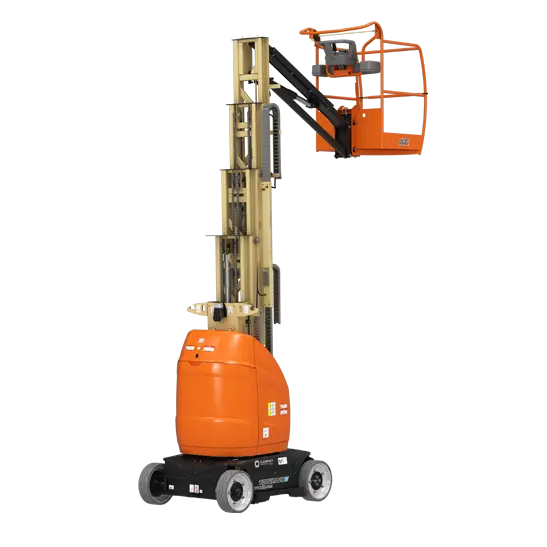

JLG Toucan 26E Specs
Quick-reference specifications for the JLG Toucan 26E vertical lift, compiled from published specifications.
- Platform Capacity
- 500 lb226.8 kg
- Gradeability
- 25%
Performance 11 specs
| Max Platform Height | 26 ft 5 in (8.05 m) |
|---|---|
| Horizontal Outreach | 8 ft 8 in (2.64 m) |
| Up and Over Height | 21 ft 5 in (6.53 m) |
| Platform Capacity | 500 lb (226.8 kg) |
| Drive Speed – Stowed | 3.4 mph (5.47 km/h) |
| Drive Speed – Elevated | 0.43 mph (0.7 km/h) |
| Gradeability | 25% |
| Swing | 345° non-continuous |
| Jib Range of Articulation | 127° |
| Turning Radius – Inside | 1 ft 10 in (0.56 m) |
| Turning Radius – Outside | 6 ft 5 in (1.96 m) |
Dimensions 9 specs
| Overall Length | 9 ft 3 in (2.82 m) |
|---|---|
| Overall Width | 3 ft 9 in (1.14 m) |
| Overall Height | 6 ft 7 in (1.99 m) |
| Ground Clearance | 3 in (0.08 m) |
| Platform Size – Dimension A | 2 ft 5 in (0.74 m) |
| Platform Size – Dimension B | 3 ft (0.91 m) |
| Wheelbase | 3 ft 11 in (1.19 m) |
| Tailswing | 2 in (0.06 m) |
| Tire Size | 125 x 406 non-marking |
Weight 2 specs
| Machine Weight | 6,900 lb (3,129.79 kg) |
|---|---|
| Maximum Ground Bearing Pressure | 319 psi (22.34 kg/cm²) |
Power / Engine 2 specs
| Battery Capacity | 260 amp-hr AGM |
|---|---|
| Battery Charger Output | 27 amps |
Hydraulics / Fluids 1 spec
| Hydraulic Reservoir Capacity | 1.9 gal (7 L) |
|---|
