Toucan Series Mast Boom Lift · JLG

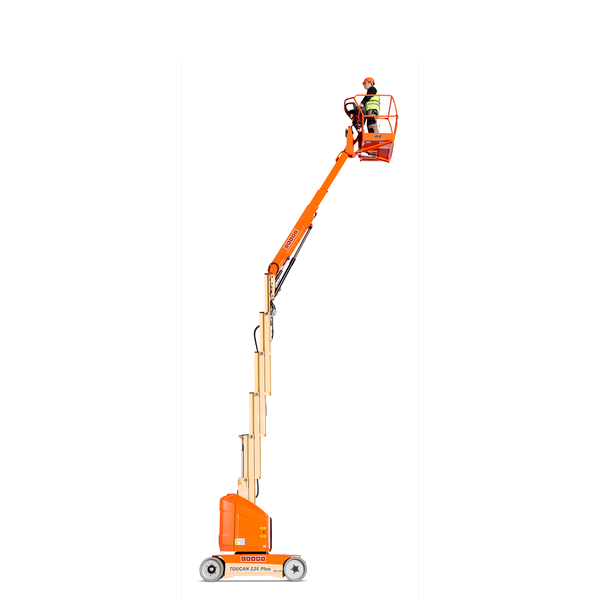

JLG Toucan 12E Plus Specs
Quick-reference specifications for the JLG Toucan 12E Plus boom lift, taken from the manufacturer’s spec sheet.
- Platform capacity
- 200 kg
- Working height
- 12.65 m
- Gradeability
- 30%
Performance 11 specs
| Working height | 12.65 m |
|---|---|
| Working outreach (standard platform) | 6.05 m |
| Swing (not continuous) | 345° |
| Platform capacity | 200 kg |
| Jib – range of articulation | 120° (+60° / -60°) |
| Drive speed – lowered | 6.0 km/h |
| Turning radius (outside) | 2.60 m |
| Turning radius (inside) | 0.75 m |
| Gradeability | 30% |
| Tyres (non-marking solid) | 457 mm x 178 mm |
| Drive motors | Dual AC motors |
Dimensions 9 specs
| Up and over height | 7.12 m |
|---|---|
| Jib – overall length | 4.14 m |
| Platform size standard platform (L x W) | 0.70 m x 1.05 m |
| Overall width | 1.20 m |
| Tailswing | 13 cm |
| Stowed height | 1.99 m |
| Overall length (standard platform) | 3.65 m |
| Wheelbase | 1.60 m |
| Ground clearance | 10 cm |
Weight 2 specs
| Machine weight – standard platform | 4,900 kg |
|---|---|
| Maximum ground bearing pressure | 14,0 kg/cm² |
Power / Engine 2 specs
| Batteries (deep cycle) | 48 V – 260 A/hr |
|---|---|
| Charger | On-board 110 V/230 V HF |
Hydraulics / Fluids 2 specs
| Electrical (pump) motor | 3.5kw – 48 V DC |
|---|---|
| Hydraulic system | 15 L |
