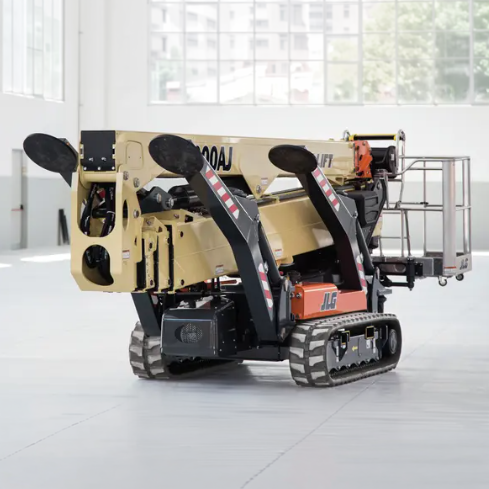

JLG X1000AJ Specs
Quick-reference specifications for the JLG X1000AJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Height
- 100 ft30.48 m
- Working Height
- 106 ft32.30 m
- Gradeability
- 28%
Performance 12 specs
| Horizontal Outreach | 54 ft 2 in (16.50 m) |
|---|---|
| Working Height | 106 ft (32.30 m) |
| Max Working Horizontal Outreach | 54 ft 2 in (16.50 m) |
| Swing | 360 Degrees Non-continuous |
| Travel Speed (Diesel) | 1.1 mph (1.8 km/h) |
| Travel Speed (Lithium Ion) | 8 mph (1.3 km/h) |
| Max Approach Angles: Front | 18 Degrees (33%) |
| Max Approach Angles: Rear | 16 Degrees (29%) |
| Max Stabilization Slope | 13 Degrees |
| Gradeability | 28% |
| Total Stabilization Area | 18 ft 2 in x 16 ft 5 in (5.49 x 5 m) |
| Reduced Stabilization Area | 22 ft x 12 ft 2 in (6.71 x 3.71 m) |
Dimensions 14 specs
| Platform Height | 100 ft (30.48 m) |
|---|---|
| Up and Over Height | 56 ft 5 in (17.2 m) |
| Platform Width | 28 in (71 cm) |
| Platform Length | 63 in (1.60 m) |
| Machine Width | 47 in (1.19 m) |
| Machine Height | 6 ft 6 in (1.98 m) |
| Machine Length | 21 ft 3 in (6.48 m) |
| Machine Length Without Platform | 19 ft 3 in (5.80 m) |
| Track length | 6 ft 10 in (2.08 m) |
| Outrigger Footprint – Length | 18 ft 2 in (5.49 m) |
| Outrigger Footprint – Width | 16 ft 5 in (5 m) |
| Outrigger Footprint – Narrow Length | 22 ft (6.71 m) |
| Outrigger Footprint – Narrow Width | 12 ft 2 in (3.71 m) |
| Outrigger Pad Diameter | 15.7 in (40 cm) |
Weight 5 specs
| Ground Bearing Pressure (Tracks) | 11.3 psi (.79 kg/cm2) |
|---|---|
| Ground Bearing Pressure (Outriggers) | 58 psi (4.1 kg/cm²) |
| Weight (Diesel) | 17,230 lb (7,815 kg) |
| Weight (Lithium Ion) | 17,273 lb (7,835 kg) |
| Weight (Bi-Energy) | 17,538 lb (7,955 kg) |
Power / Engine 3 specs
| Diesel Engine: Kubota D902 | 21.6 hp (16.1 kW) |
|---|---|
| Electric-motor | 380 V AC / 50 HZ, 11 kW |
| Optional: 64V Lithium Ion Battery | 64 V, 300 Ah / 19.2 kW |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity (Diesel) | 6.6 gal (25 L) |
|---|---|
| Hydraulic System – Capacity | 21 gal (80 L) |
