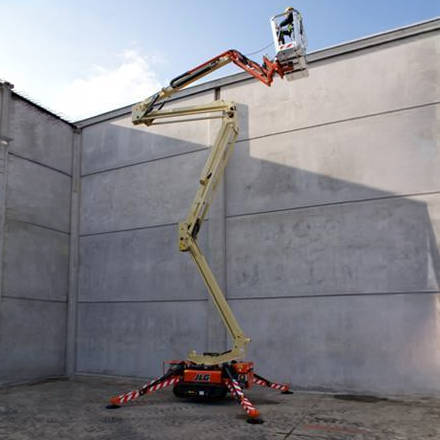

JLG X23J Specs
Quick-reference specifications for the JLG X23J boom lift, taken from the manufacturer’s spec sheet.
- Working Height
- 23.10 m
- Gradeability
- 40%
Performance 6 specs
| Working Height | 23.10 m |
|---|---|
| Swing (non continuous) | 360° |
| Jib – range of articulation (+/-) | 85° (-1° / -86°) |
| Gradeability | 40% |
| Maximum operating slope | 13° |
| Max. Approach / Depart angles | Front 22° / Rear 25° |
Dimensions 8 specs
| Jib – overall length | 1.43 m |
|---|---|
| Platform size (standard 2 persons) | 0.69 m x 1.34 m |
| Stowed width (with std. 2P platform) | 1.48 m |
| Stowed width (without platform) | 0.99 m |
| Stowed height (on tracks) | 1.99 m |
| Stowed length (on tracks) | 6 m |
| Outrigger footprint | 3.98 m x 3.98 m |
| Width of Undercarriage (Retracted/Extended) | 0.99 m / 1.29 m |
Weight 2 specs
| Machine weight (with standard platform) | 2,990 kg |
|---|---|
| Max. ground bearing pressure (on outriggers) | 3.06 kg/cm2 |
