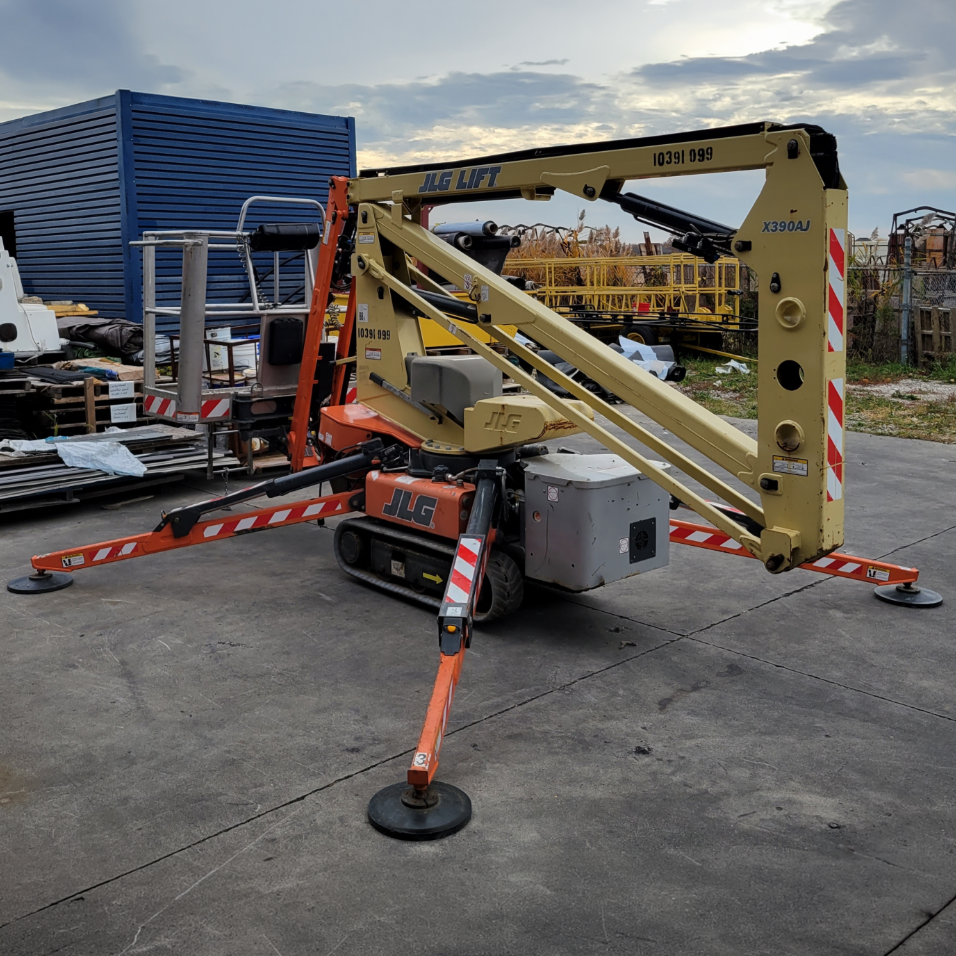

JLG X390AJ Specs
Quick-reference specifications for the JLG X390AJ boom lift, compiled from published specifications.
- Platform Capacity
- 440 lb200 kg
- Platform Height
- 39 ft 2 in11.9 m
- Working Height
- 45 ft13.71 m
- Operating Weight
- 3,682 lb1,670 kg
Performance 10 specs
| Platform Height | 39 ft 2 in (11.9 m) |
|---|---|
| Working Height | 45 ft (13.71 m) |
| Horizontal Outreach | 22 ft (6.70 m) |
| Swing | 360° Non-continuous |
| Platform Capacity | 440 lb (200 kg) |
| Jib Range of Articulation | 88° (-2/-90) |
| Drive Speed | 0.87 mph (1.4 km/h) |
| Gradeability | 33% |
| Slope Tolerance | 10° |
| Ground Bearing Pressure | 27 psi (1.9 kg/cm²) |
Dimensions 5 specs
| Stowed Length | 13 ft (3.98 m) |
|---|---|
| Overall Width | 31 in (0.77 m) |
| Stowed Height | 6 ft 10 in (2.07 m) |
| Track Length | 4 ft 1 in (1.24 m) |
| Platform Size | 57 in x 31 in (1.45 x 0.77 m) |
Weight 1 spec
| Operating Weight | 3,682 lb (1,670 kg) |
|---|
Power / Engine 2 specs
| Gasoline Engine | Honda iGX390 – 13 hp (9.7 kW) |
|---|---|
| Motor Option | 120 V 60 Hz (1.2 kW) or 220 V 60 Hz (2.2 kW) |
