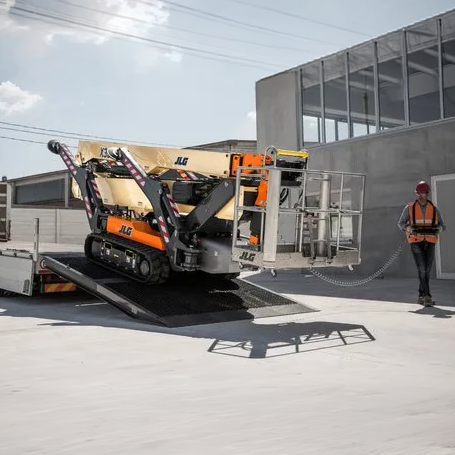

JLG X33JP Specs
Quick-reference specifications for the JLG X33JP boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity (Unrestricted)
- 230 kg
- Platform height
- 30.50 m
- Working height
- 32.60 m
- Gradeability
- 28.7%
Performance 13 specs
| Working height | 32.60 m |
|---|---|
| Horizontal outreach | 16.00 m |
| Horizontal Outreach (Std Platform) | 16.00 m |
| Horizontal Working Outreach (Std Platform) | 16.50 m |
| Swing (non continuous) | 360° |
| Platform Capacity (Unrestricted) | 230 kg |
| Platform Capacity (Restricted) | 300 kg |
| Basket rotation | 180° (+90°/-90°) |
| Jib – Range of articulation | 180° (+85/-95°) |
| Turning Radius – Outside | 2.2 m |
| Maximum drive speed (with standard second speed) Electric | 1.3 km/h |
| Gradeability | 28.7% |
| Maximum operating slope | 16° |
Dimensions 13 specs
| Platform height | 30.50 m |
|---|---|
| Up & Over Height | 17.20 m |
| Jib – Overall Length | 1.3 m |
| Platform size (standard 2 persons) | 0.70 m x 1.6 m |
| Track size – High profile non marking tracks | 2.10 m x 0.23 m x 0.38 m |
| Stowed width (with platform) | 1.70 m |
| Stowed width (without platform) | 1.20 m |
| Stowed height (on tracks) | 1.99 m |
| Stowed length (on tracks) with Platform | 6.50 m |
| Stowed length (on tracks) without Platform | 5.80 m |
| Outrigger footprint – Maximum – center of plates | 5.13 m x 4.60 m |
| Outrigger footprint – Reduced – center of plates | 6.30 m x 3.30 m |
| Track Length | 2.10 m |
Weight 5 specs
| Machine weight (diesel) | 7.815 kg |
|---|---|
| Machine weight (lithium) | 7.835 kg |
| Machine weight (bi-energy) | 7.955 kg |
| Maximum ground bearing pressure (on outriggers) | 4 daN/cm² |
| Maximum ground bearing pressure (on tracks) | 0.79 daN/cm2 |
Power / Engine 2 specs
| AC electric motor | 380 V, 50 Hz – 11 kW |
|---|---|
| Lithium 19.2 KW – 64V/300Ah | 110 V-230 V +/- 30 V 50-60 Hz |
Hydraulics / Fluids 1 spec
| Hydraulic oil tank capacity | 82 L |
|---|
