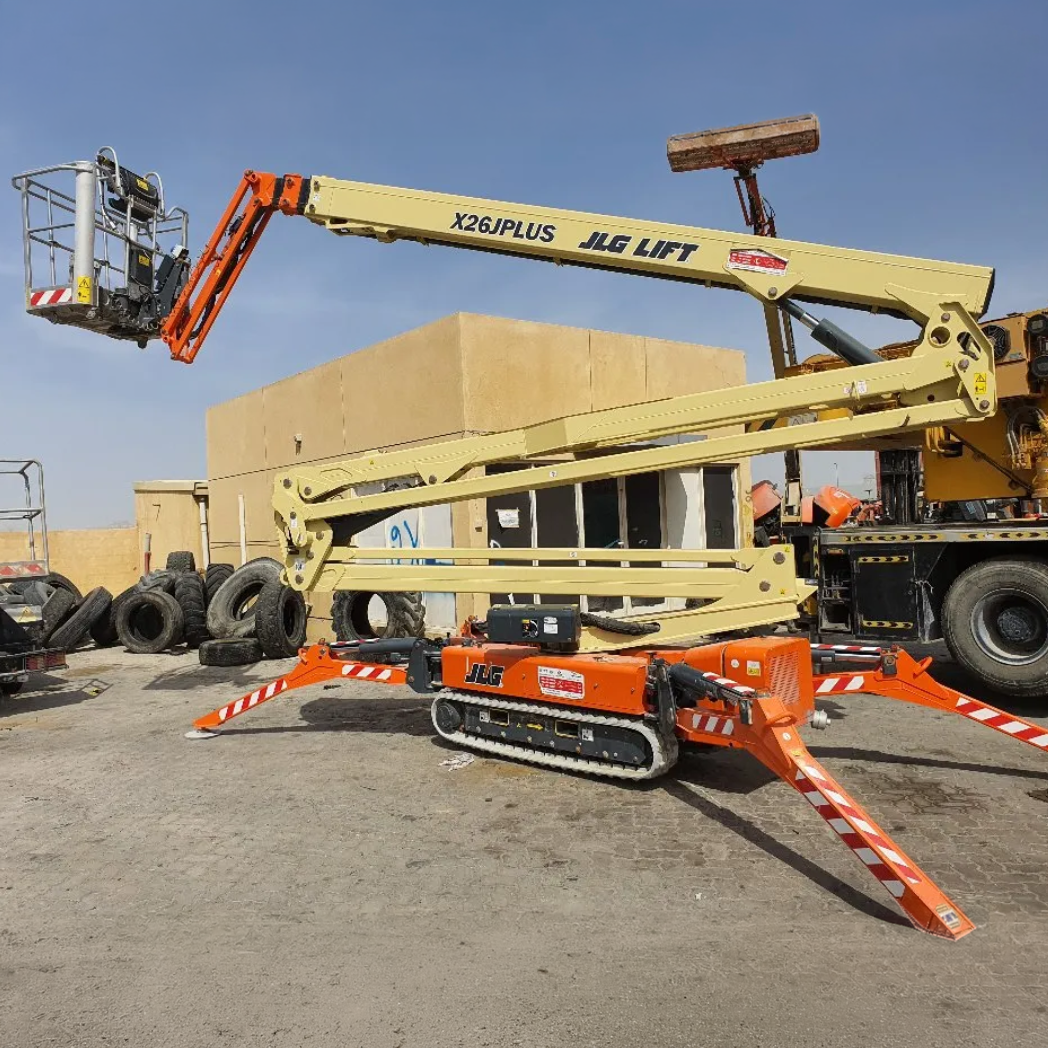

JLG X26JP Specs
Quick-reference specifications for the JLG X26JP boom lift, taken from the manufacturer’s spec sheet.
- Platform capacity
- 230 kg
- Working Height
- 25.60 m
- Gradeability
- 28.7%
Performance 10 specs
| Working Height | 25.60 m |
|---|---|
| Horizontal Working Outreach (Std Platform) | 13.75 m |
| Platform capacity | 230 kg |
| Swing (non continuous) | 360° |
| Jib – range of articulation: (+/-) | 89° (+0/-89°) |
| Gradeability | 28.7% |
| Maximum operating slope | 16° |
| Max. Approach / Depart angles | Front 22° / Rear 26° |
| Max. drive speed (single speed m/c) Petrol | 1.1 km/h |
| Basket rotation | 124° (+/-62°) |
Dimensions 12 specs
| Up & Over Height | 10.1 m |
|---|---|
| Jib – overall length | 1.68 m |
| Platform size (standard 2 persons) | 0.69 m x 1.34 m |
| Platform size (narrow one person) | 0.60 m x 0.78 m |
| Stowed width (with std. 2P platform) | 1.34 m |
| Stowed width (without platform) | 0.99 m |
| Stowed height (on tracks) | 1.99 m |
| Stowed length (on tracks) | 6.35 m |
| Stowed length (on tracks) without Basket | 5.98 m |
| Outrigger footprint D1. Wide | 4.01 m x 3.98 m |
| Outrigger footprint D2. Narrow | 5.4 m x 2.5 m |
| Width of Undercarriage (Retracted/Extended) | 0.99 m / 1.49 m |
Weight 2 specs
| Machine weight (with standard platform) | 4,365 kg |
|---|---|
| Max. ground bearing pressure (on outriggers) | 4.51 kg/cm² |
Power / Engine 1 spec
| AC electric motor | 230 V, 50Hz, 2.2 kW |
|---|
Hydraulics / Fluids 1 spec
| Hydraulic oil tank capacity | 60 L |
|---|
