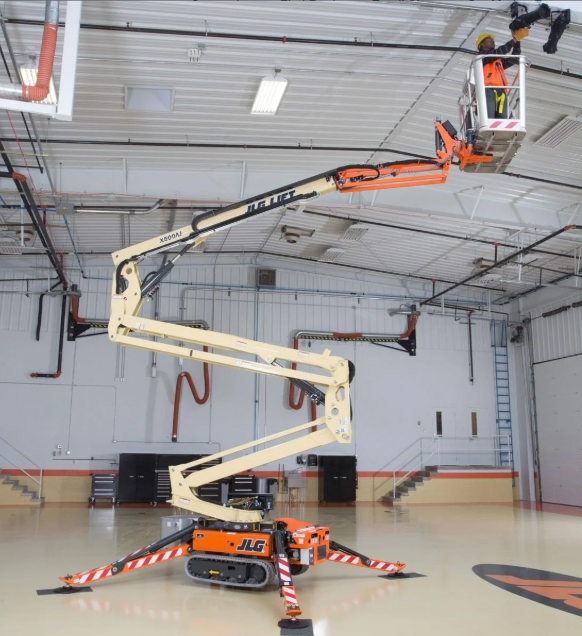

JLG X500AJ Specs
Quick-reference specifications for the JLG X500AJ boom lift, taken from the manufacturer’s spec sheet.
- Platform Capacity
- 500 lb227 kg
- Platform Height
- 49 ft14.95 m
- Gradeability
- 28%
Performance 7 specs
| Horizontal Outreach | 23 ft (7 m) |
|---|---|
| Platform Capacity | 500 lb (227 kg) |
| Swing | 360 Degrees Non-continuous |
| Drive Speed | 8 mph (1.3 km/h) |
| Max Approach / Depart Angles | 20° / 21° |
| Max Stabilization Slope | 12 Degrees |
| Gradeability | 28% |
Dimensions 12 specs
| Platform Height | 49 ft (14.95 m) |
|---|---|
| Overall Width | 31 in (0.78 m) |
| Platform Width | 30 in (76 cm) |
| Platform Length | 58 in (1.47 m) |
| Machine Width | 31 in (78 cm) |
| Machine Height | 6 ft 6 in (1.98 m) |
| Machine Length | 14 ft 10 in (4.53 m) |
| Machine Length Without Platform | 13 ft 8 in (4.16 m) |
| Track length | 4 ft 1 in (1.24 m) |
| Outrigger Footprint Length | 10 ft 5 in (3.17 m) |
| Outrigger Footprint Width | 10 ft 5 in (3.17 m) |
| Outrigger Pad Diameter | 11.8 in (30 cm) |
Weight 3 specs
| Ground Bearing Pressure (Tracks) | 9.72 psi (.68 kg/cm2) |
|---|---|
| Ground Bearing Pressure (Outriggers) | 35.53 psi (2.49 kg/cm²) |
| Weight (Diesel) | 5,071 lb (2,300 kg) |
Power / Engine 3 specs
| Engine: Honda iGX390 | 11.7 hp (8.7 kW) |
|---|---|
| Motor | 120 V AC / 60 HZ |
| Optional: 48V Lithium Ion Battery | 48 V / 90 Ah |
Hydraulics / Fluids 2 specs
| Fuel Tank Capacity | 1.5 gal (5.9 L) |
|---|---|
| Hydraulic System – Capacity | 10.56 gal (40 L) |
