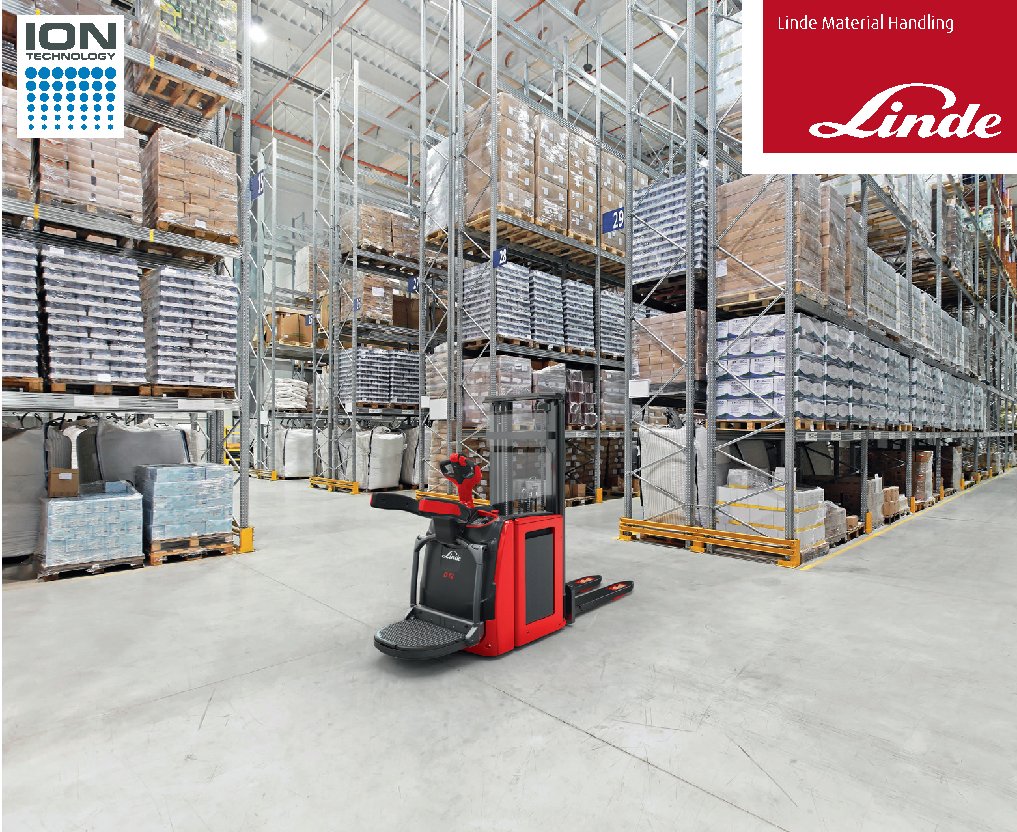

Linde D12AP Specs

Quick-reference specifications for the Linde D12AP forklift, taken from the manufacturer’s spec sheet.

Performance 7 specs

Load capacity / Load	1200 kg
Turning radius	2011 / 2339 mm
Travel speed, with/without load	4 / 4; 6/6; 8/ 10 km/h
Lifting speed, with/without load	0.16/0.30 m/s
Lowering speed, with/without load	0.40/0.35 m/s
Service brake	Electro
Sound pressure level LpAZ (at the driver’s seat)	< 66 dB (A)

Load centre distance	600 mm
Axle centre to fork face	842 mm
Wheelbase	1597 mm
Tyre size, front	Ø 230 × 90
Auxiliary wheels (dimensions)	2x Ø 140 × 50
Track width, front	534 mm
Track width, rear	380 mm
Height of mast, lowered	1915 mm
Free lift	1395 mm
Lift	4266 mm
Height of mast, extended	4786 mm
Initial lift	125 mm
Height of tiller arm in operating position, min/max	1162.5 / 1305.6 mm
Height, lowered	86 mm
Overall length	2225 / 2558 mm
Length to fork face	1075 / 1408 mm
Overall width	800 mm
Fork dimensions DIN ISO 2331	71 × 180 × 1150 mm
Width of fork carriage	780 mm
Fork spread	560/680 mm
Ground clearance, centre of wheelbase	30 mm
Aisle width with pallet 800 × 1200 along forks	2693 / 3021 mm

Service weight	1150 kg
Axle load with load, front / rear	967 / 1383 kg
Axle load without load, front / rear	785 / 365 kg

Drive motor rating S2 60 min	2.3 kW
Lift motor rating at S3 15 %	3.2 kW
Battery according to DIN 43531 / 35 / 36 A, B, C, no	3 PzS-SL
Battery weight	272 / 315 min. /max. kg
Power Consumption according to VDI cycle normalized	1.27 kWh/h
Power Consumption on turnover output	1.84 kWh/h
Type of drive unit	LAC
